7800 HORIZONTAL 11031-JP
7800 HORIZONTAL 11031-JP
Key Specifications for 1750 & 3450 RPM Models
Flow: Up to 130 gpm (1750 RPM) | Up to 230 gpm (3450 RPM)
Head: Up to 53’ TDH (1750 RPM) | Up to 204’ TDH (3450 RPM)
Liquid Temp: Max 180° F
Power Options: 1 hp, 1.5 hp, 2 hp, 3 hp, 5 hp, 7.5 hp, 10 hp and 15 hp
Motor Type: Standard JP Motor
Max Solid Size: .5”
Intake: 2.5”
Discharge: 2”
SELECT A DIFFERENT MODEL
Not sure what model you need? Visit PumpIQ.

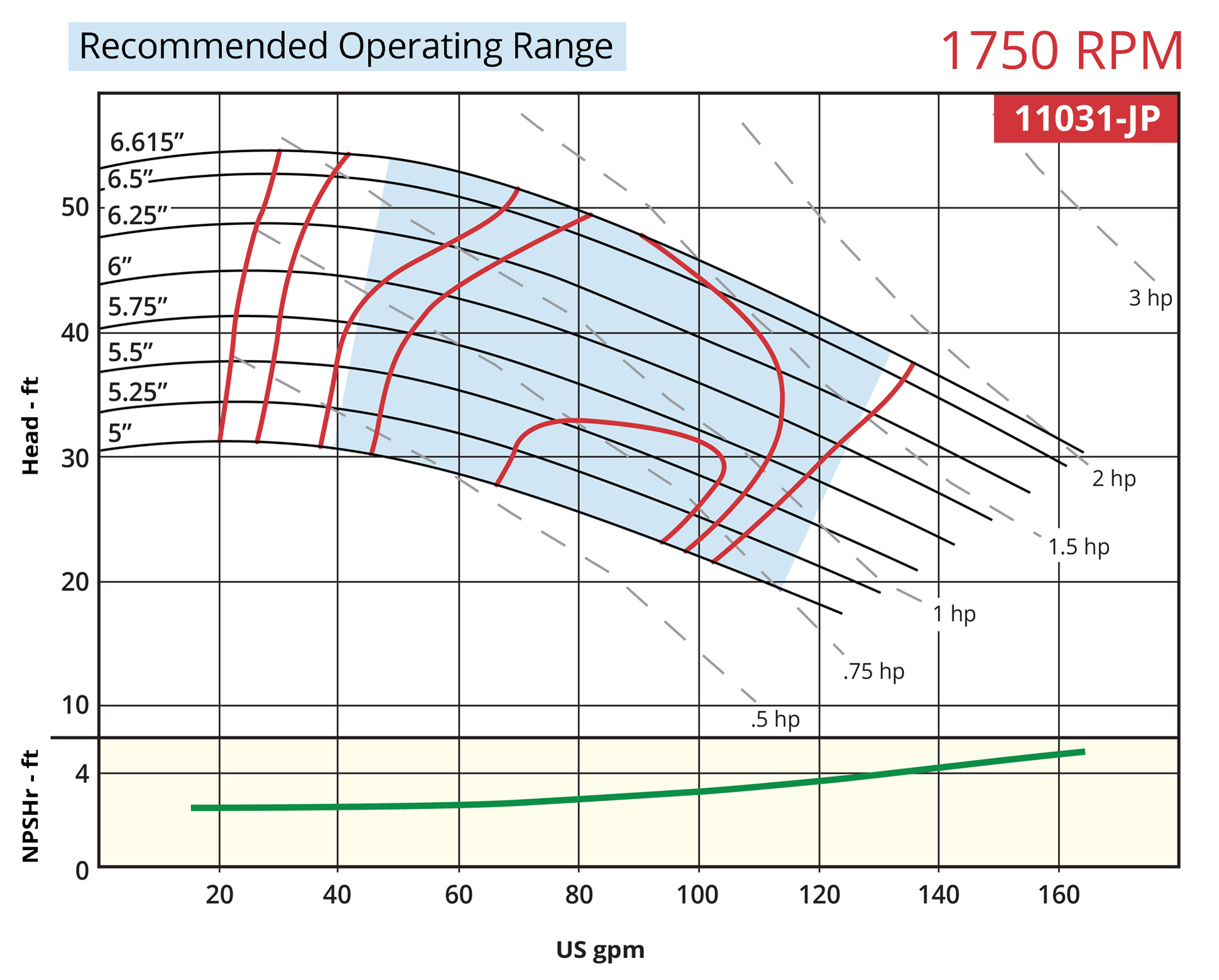

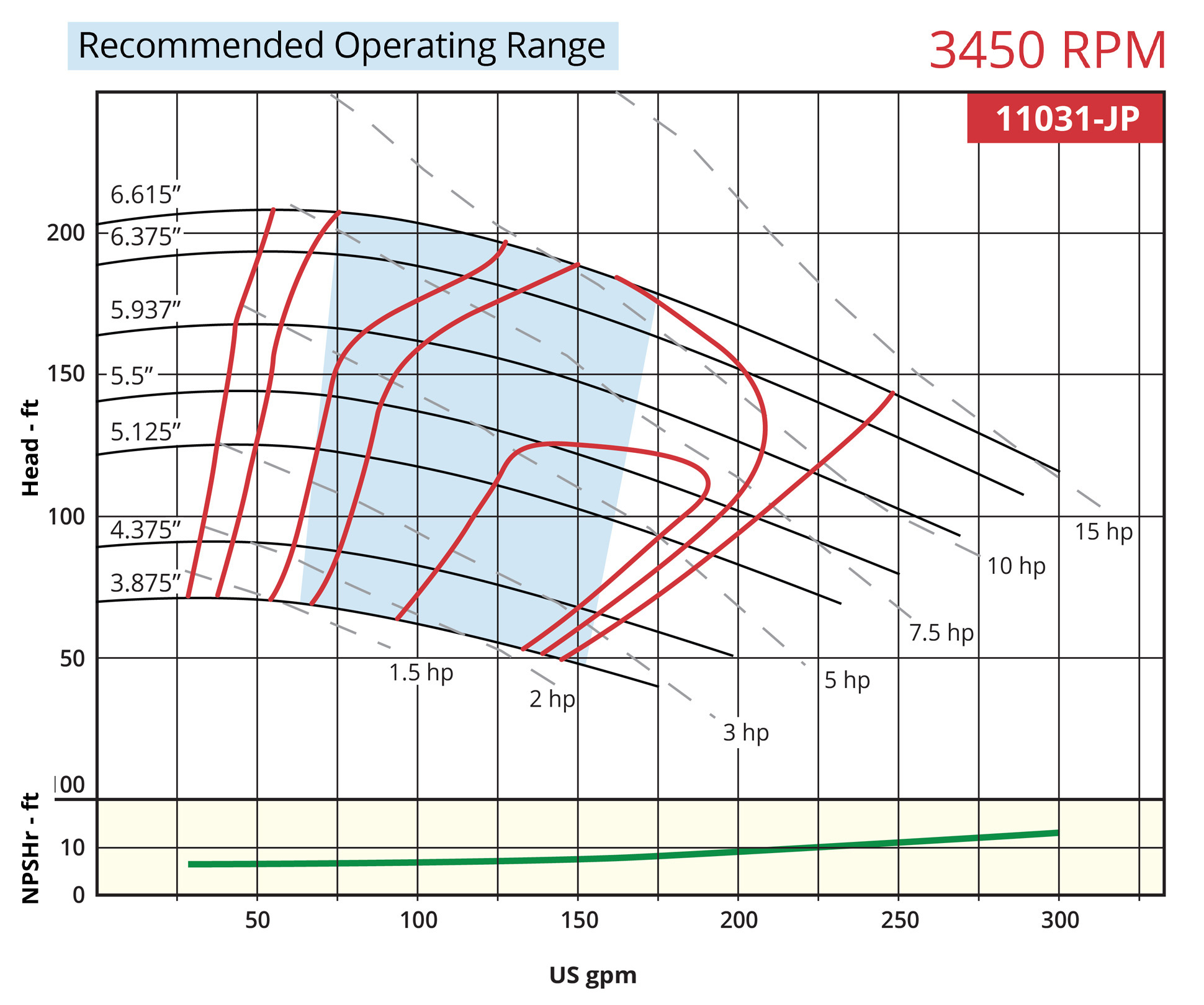

Performance Curves

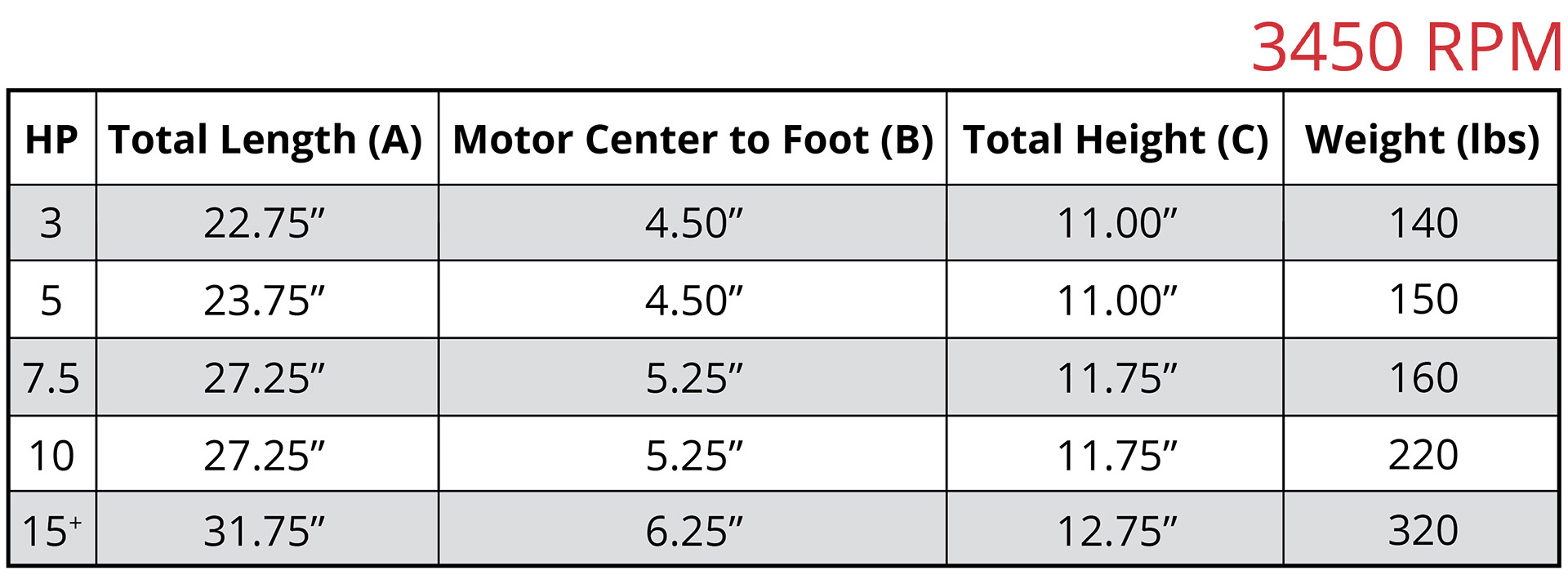

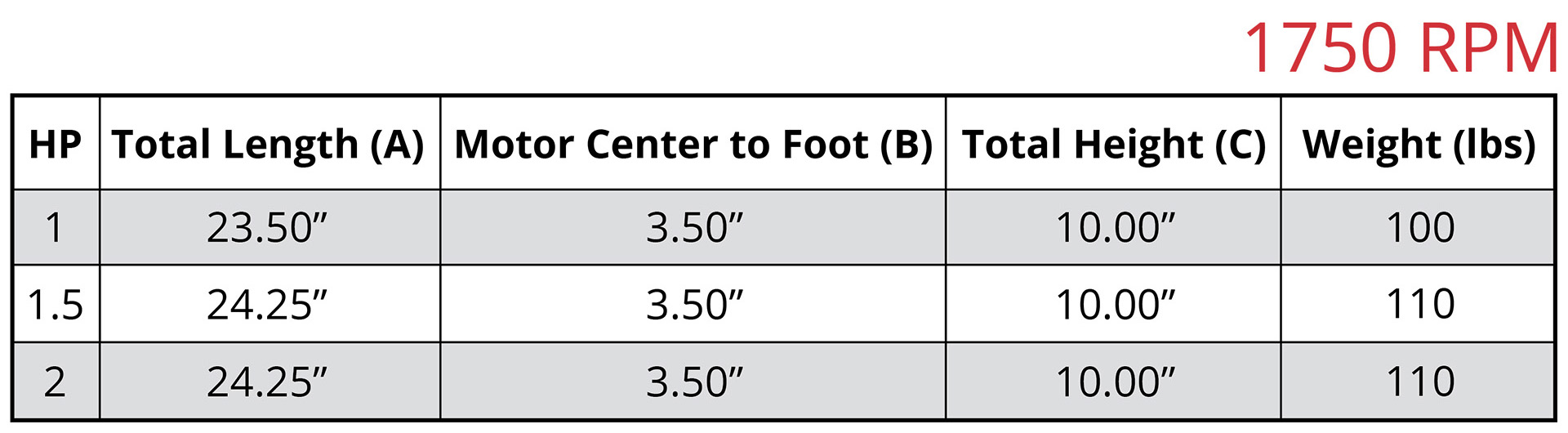

Dimensions / Weights

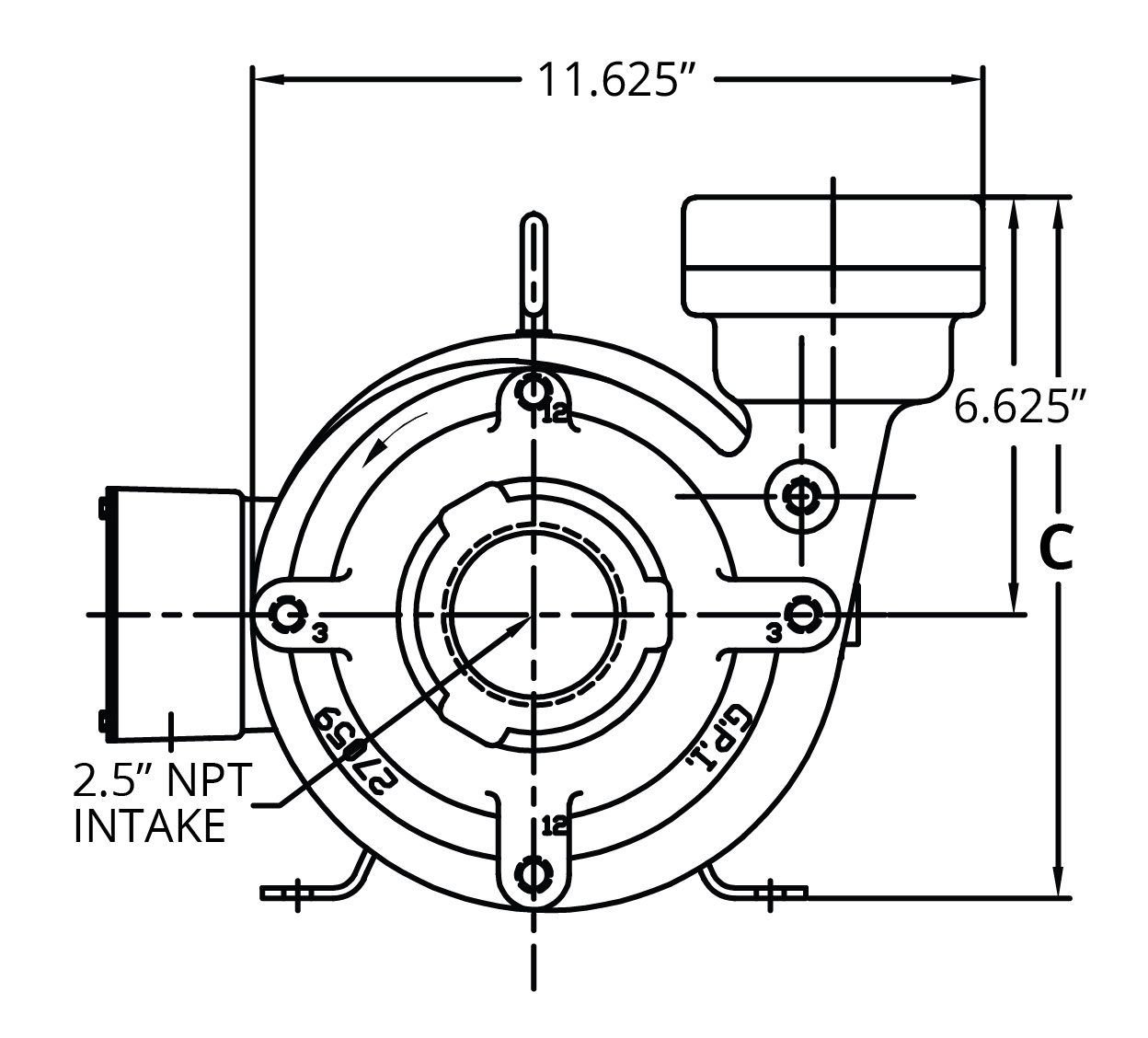

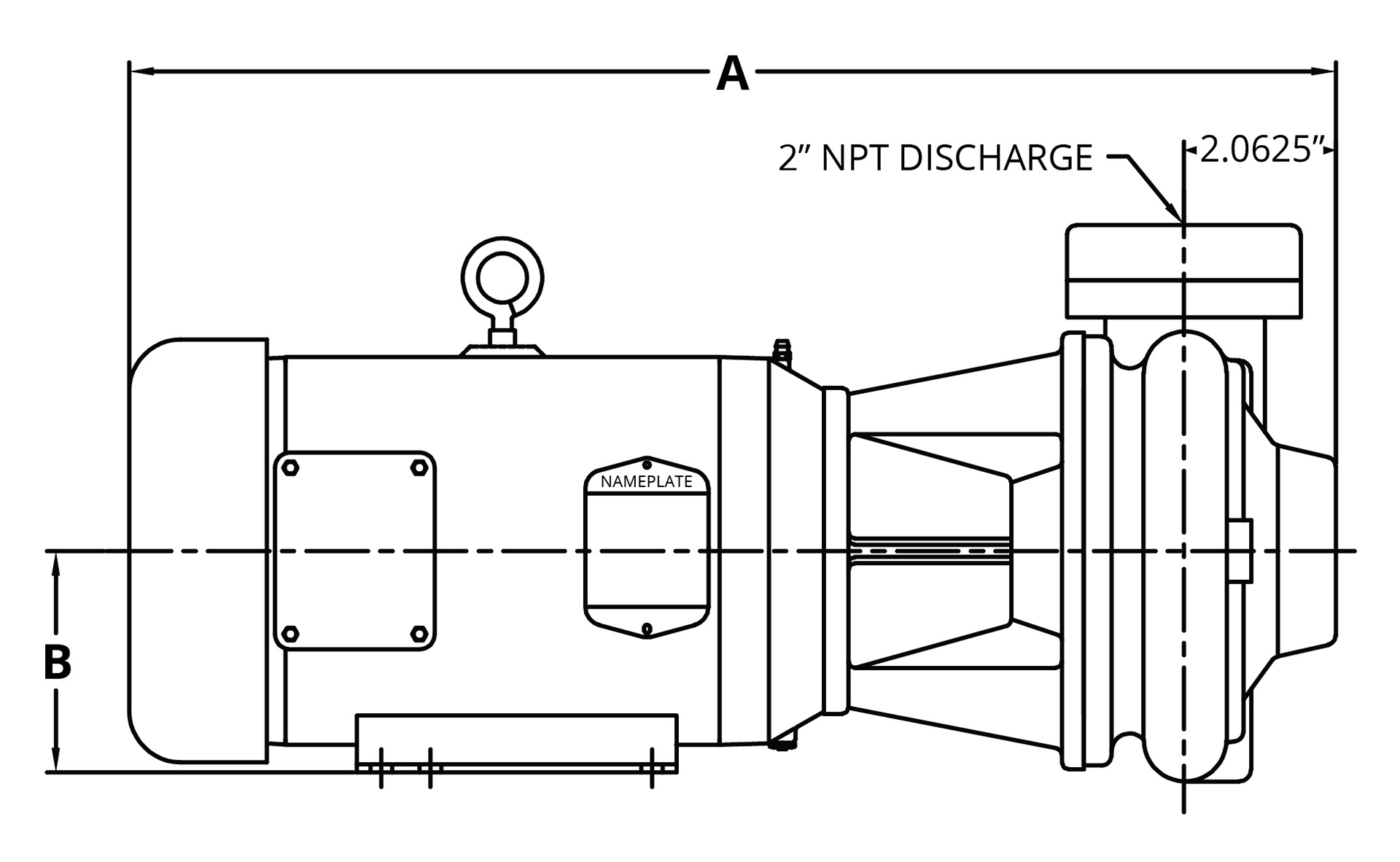

Dimensions*




*For reference only; not for construction. Contact Gusher Engineering for certified drawings.
+Available in 3 phase only
