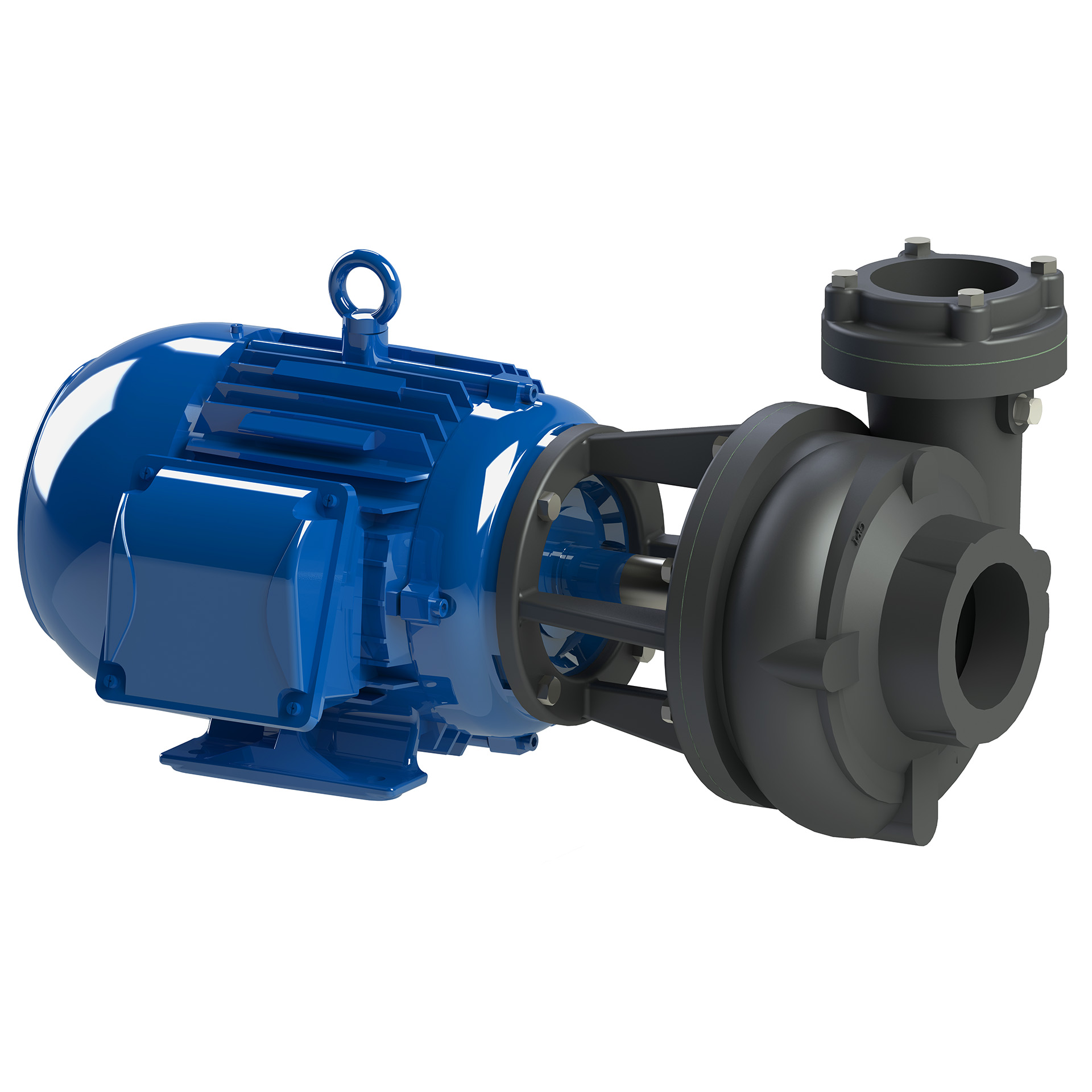

7800 HORIZONTAL 11032-JP

7800 HORIZONTAL 11032-JP

7800 HORIZONTAL 11032-JP

Key Specifications for 1750 & 3450 RPM Models

Flow: Up to 180 gpm (1750 RPM) | Up to 410 gpm (3450 RPM)
Head: Up to 48’ TDH (1750 RPM) | Up to 180’ TDH (3450 RPM)
Liquid Temp: Max 180° F
Power Options: 1 hp, 1.5 hp, 2 hp, 3 hp, 5 hp, 7.5 hp, 10 hp, 15 hp, 20 hp and 25 hp
Motor Type: Standard JP Motor
Max Solid Size: .68”
Intake: 3”
Discharge: 3”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

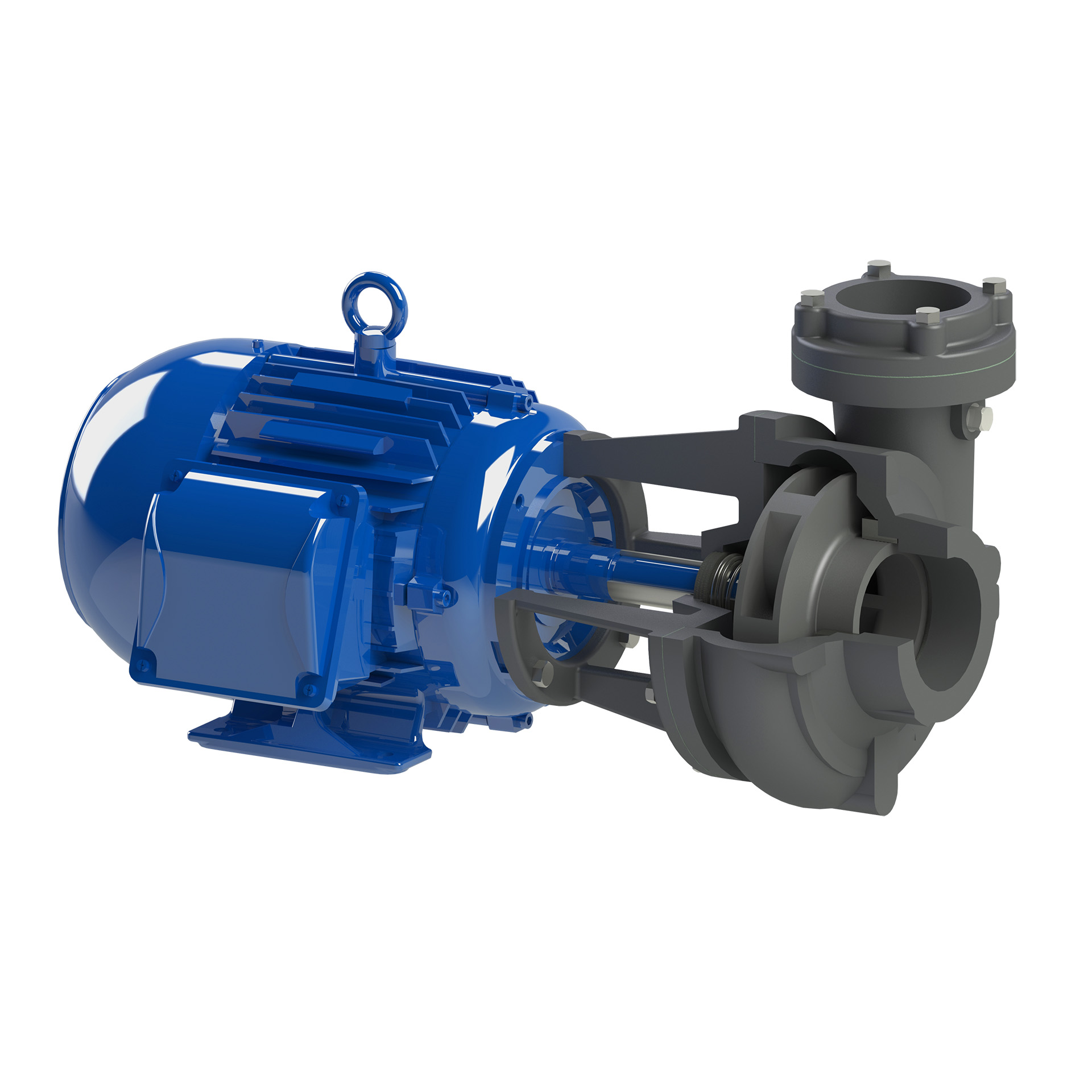

  • Back pullout design reduces service downtime (learn more)
  • Durable one-piece shaft eliminates risk of coupling misalignment
  • Renewable shaft sleeve protects shaft from wear
  • Mechanical seal prevents leakage
  • Enclosed impeller for maximum efficiency

Options:

  • Cast Iron or 316 Stainless Steel construction
  • Choice of 1 or 3 phase motor
  • Multiple mechanical seal materials
  • Impeller variations: 316 Stainless Steel
  • Seal flush line addition
  • Long coupled design (CBM model pumps)

Applications:

  • Cooling equipment and towers
  • Engine and chassis dynos
  • Wastewater and water purification
  • Commercial laundry
  • Industrial sump
  • Parts washers
  • Spray booths
  • Paint systems

Performance Curves

Dimensions / Weights

Dimensions*


*For reference only; not for construction. Contact Gusher Engineering for certified drawings.
+Available in 3 phase only
