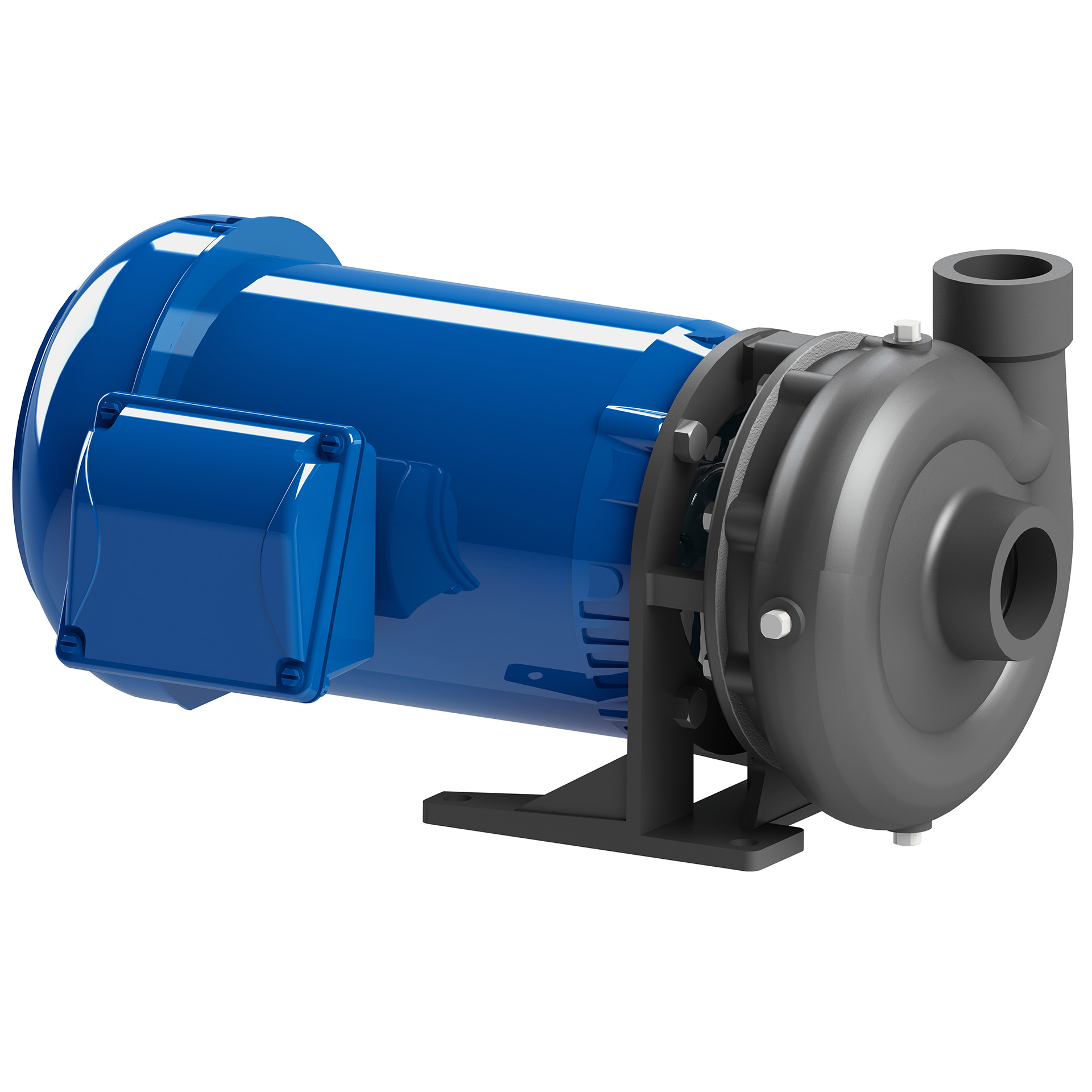

7800 HORIZONTAL E285-J

Key Specifications (Available 3450 RPM only)

Flow: Up to 112 gpm
Head: Up to 113’ TDH
Liquid Temp: Max 180° F
Power Options: 1.5 hp, 2 hp, 3 hp and 5 hp
Motor Type: 56J or TCZ frame
Max Solid Size: .25”
Intake: 1.5”
Discharge: 1.25”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

Back pullout design reduces service downtime (learn more)
Durable one-piece shaft eliminates risk of coupling misalignment
Mechanical seal prevents leakage
Enclosed impeller for maximum eﬃciency

Options:

Cast Iron or 316 Stainless Steel construction
Choice of 1 or 3 phase motor
Multiple mechanical seal materials
Impeller variations: 316 Stainless Steel
Seal ﬂush line addition

Performance Curves

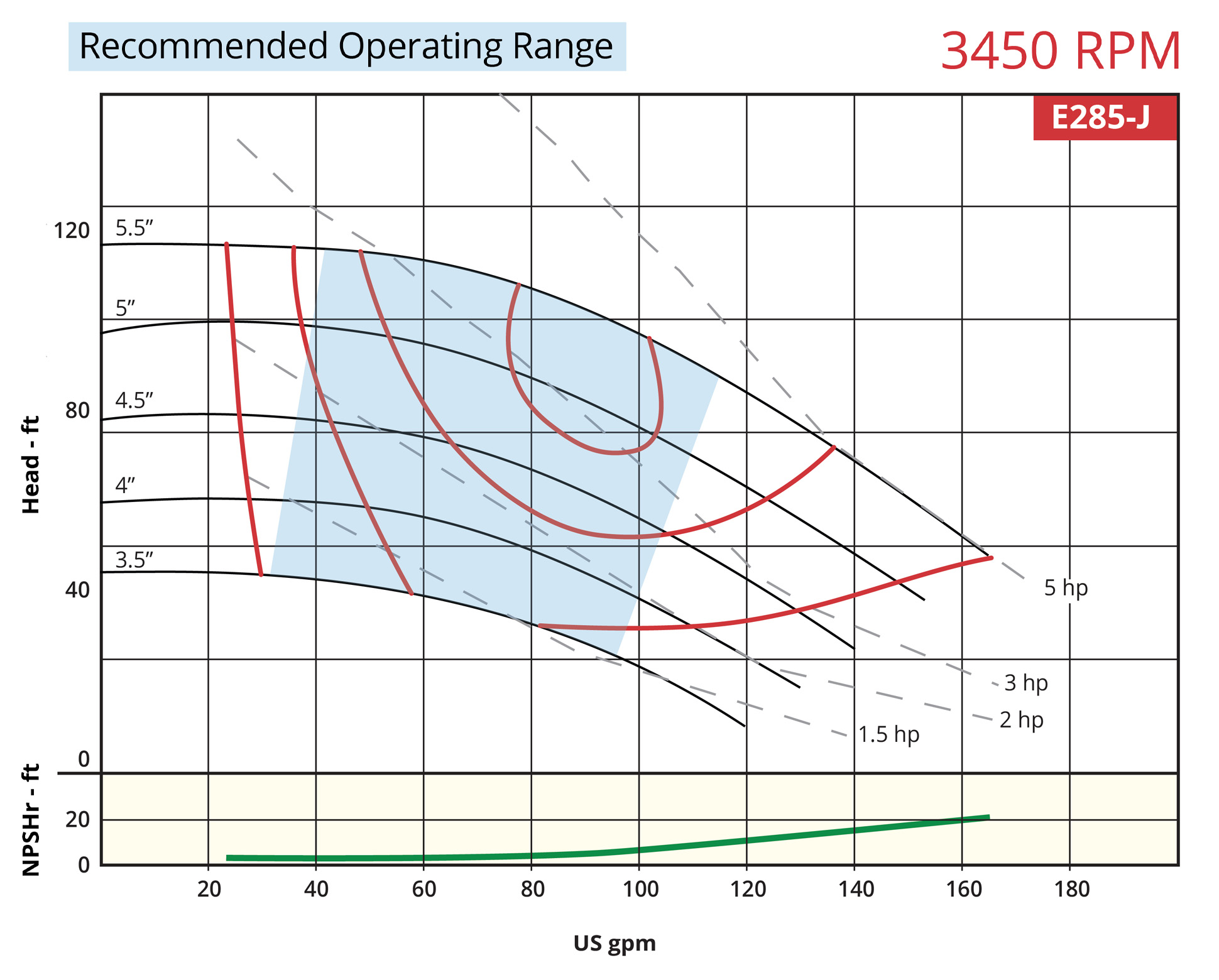

7800 Horizontal E285-J 3450rpm Operating Range Curve

Dimensions / Weights

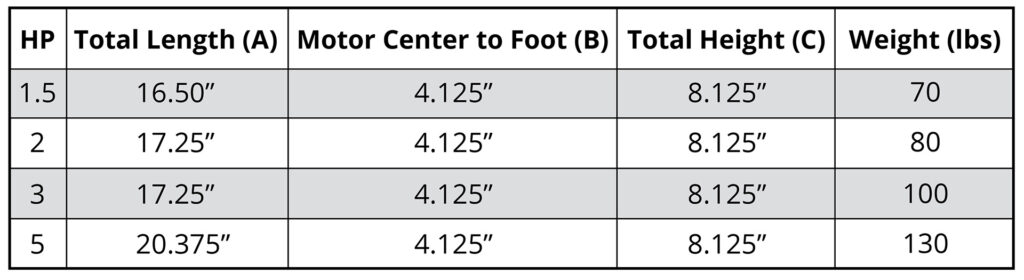

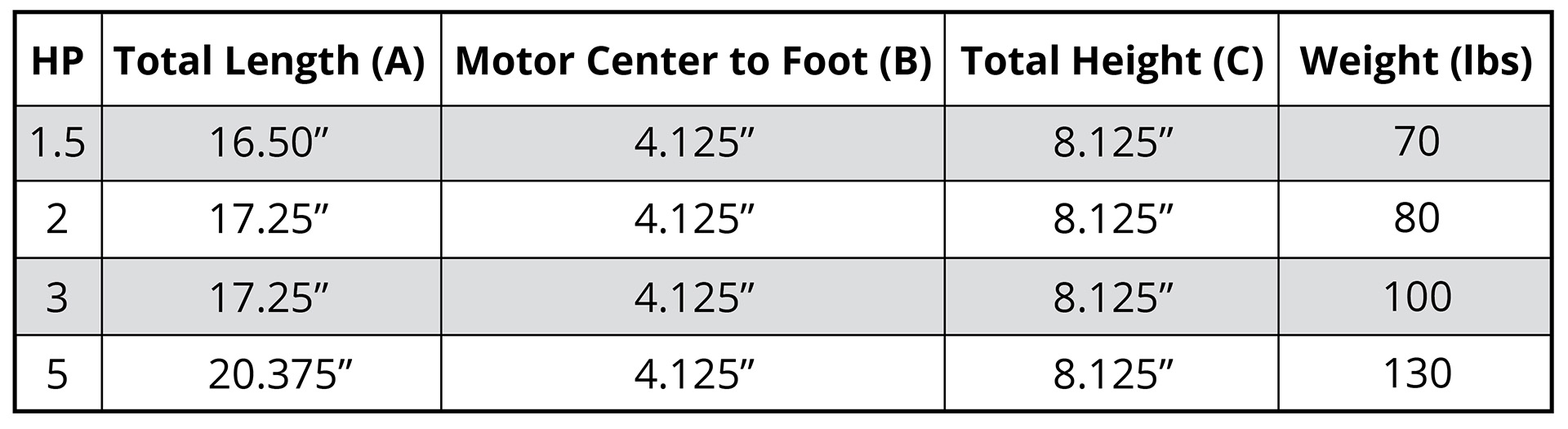

Dimensions*

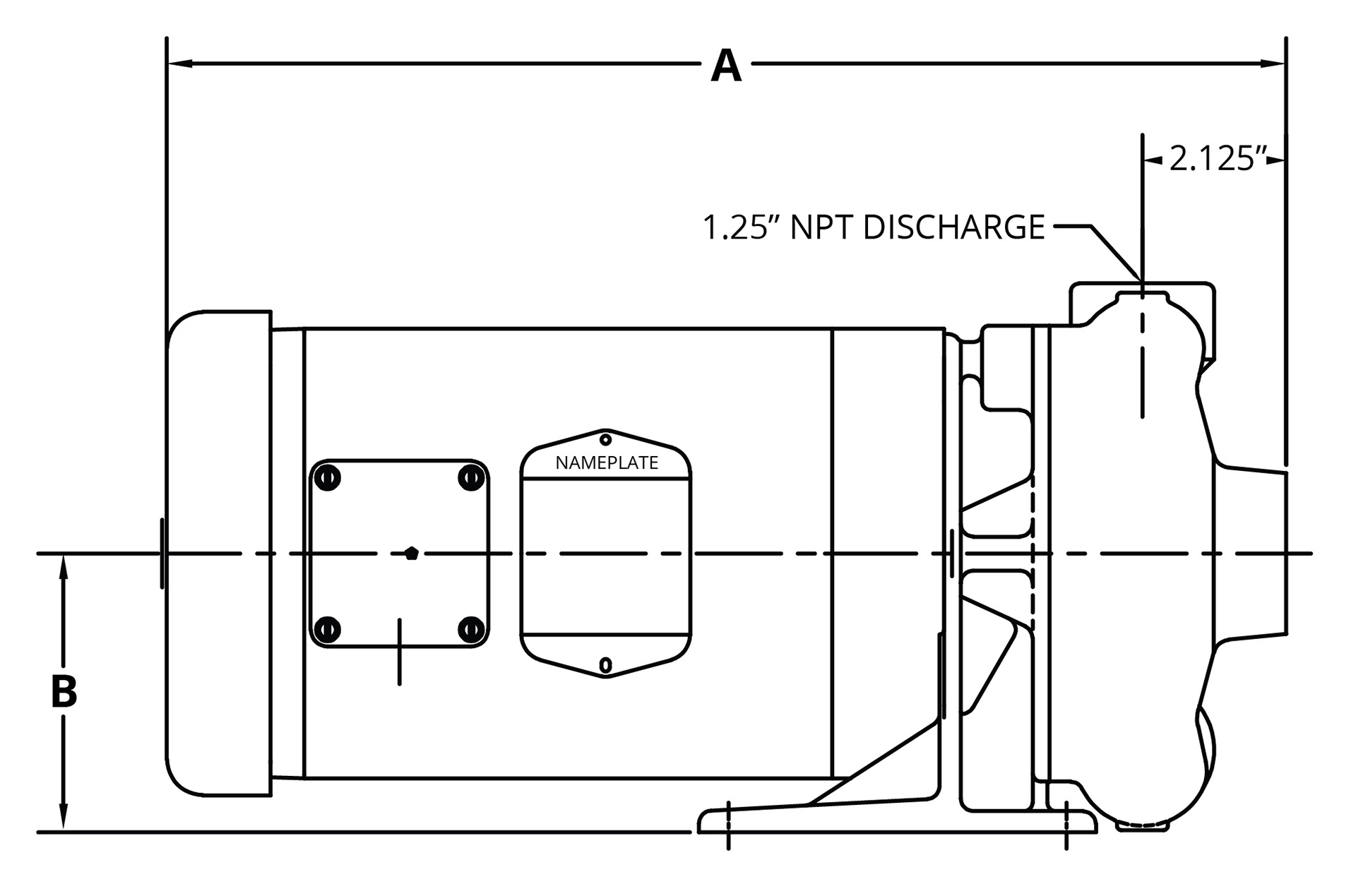

7800 Horizontal E285-J 3450rpm Full Dimensional Drawing

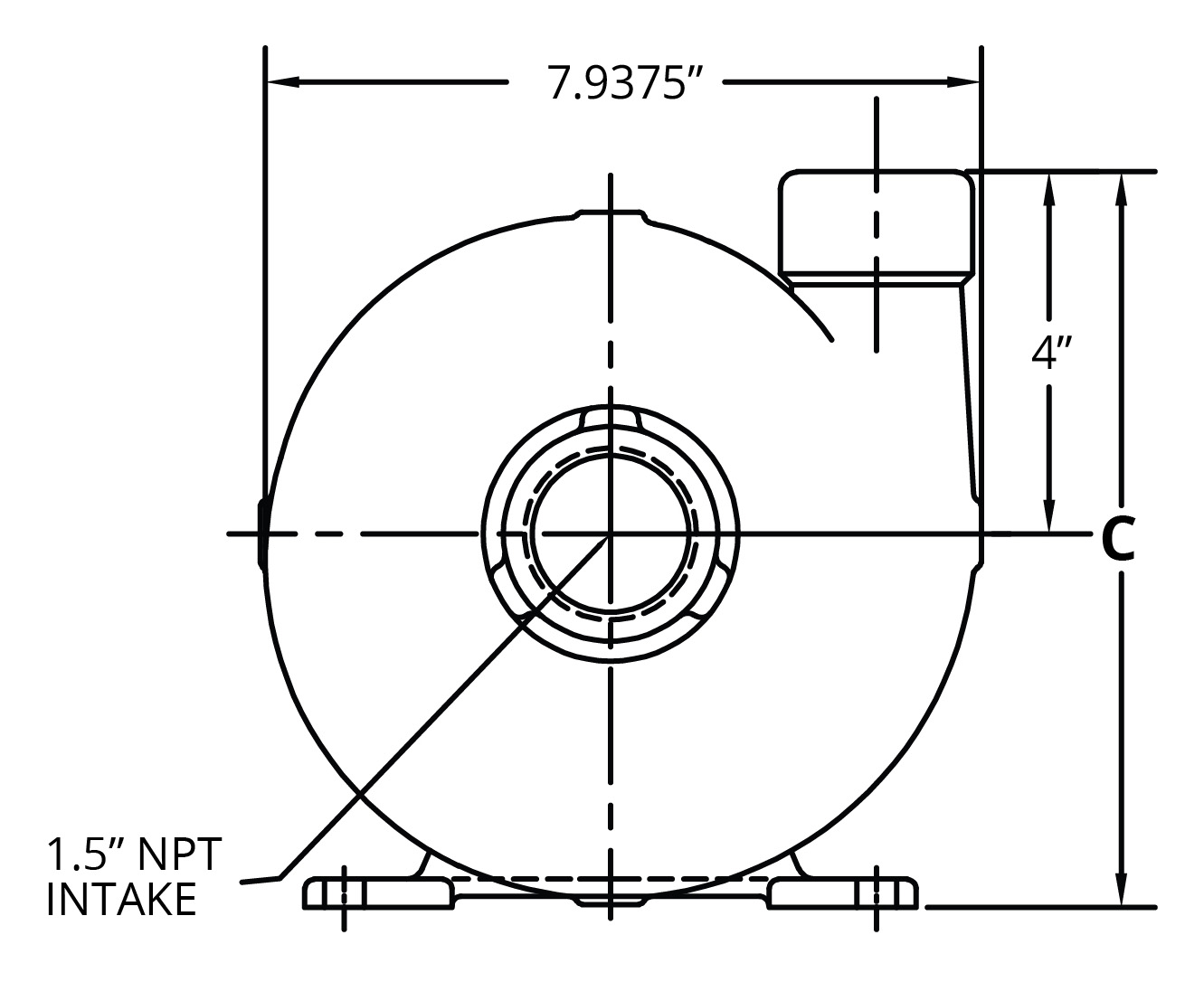

7800 Horizontal E285-J Bottom Dimensional Drawing

*For reference only; not for construction. Contact Gusher Engineering for certified drawings.

Downloads

7800 Series Manual
(English)

7800 Series
Brochure

7800 Horizontal E285-J 3450rpm Product Sheet
