7800 Vertical 11034-NS

7800 Vertical 11034-NS

7800 Vertical 11034-NS

Key Specifications for 1750 & 3450 RPM Models

Flow: Up to 95 gpm (1750 RPM) | Up to 190 gpm (3450 RPM)
Head: Up to 74’ TDH (1750 RPM) | Up to 290’ TDH (3450 RPM)
Liquid Temp: Max 180° F
Power Options: 1 hp, 1.5 hp, 2 hp, 3 hp, 5 hp, 7.5 hp, 10 hp, 15 hp and 20 hp
Motor Type: TCZ Frame
Max Solid Size: .375”
Intake: 2”
Discharge: 1.5”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

  • Durable one-piece shaft eliminates risk of coupling misalignment
  • Enclosed impeller
  • Sealless design reduces maintenance by eliminating the need for failure-prone seals
  • Renewable shaft sleeve protects shaft from wear
  • Design flexibility to suit your exact install specifications with extended lengths, multiple mounting plates and adjustable brackets

Options:

  • Enclosed column design (learn more)
  • Choice of 1 or 3 phase motor
  • Cast Iron or 316 Stainless Steel construction
  • Standard tungsten bushing and sleeve design
  • Impeller variations: 316 Stainless Steel or recessed design
  • Extended shafts (6”, 12”, 18” or 24” standard; custom available, consult engineering)
  • Adjustable mounting brackets
  • Choice of plate shape/size-
  • Choice of plate shape/size–including elbow and pipe vertical discharge

Applications:

  • Cooling equipment and towers
  • Engine and chassis dynos
  • Wastewater and water purification
  • Commercial laundry
  • Industrial sump
  • Parts washers
  • Spray booths
  • Paint systems

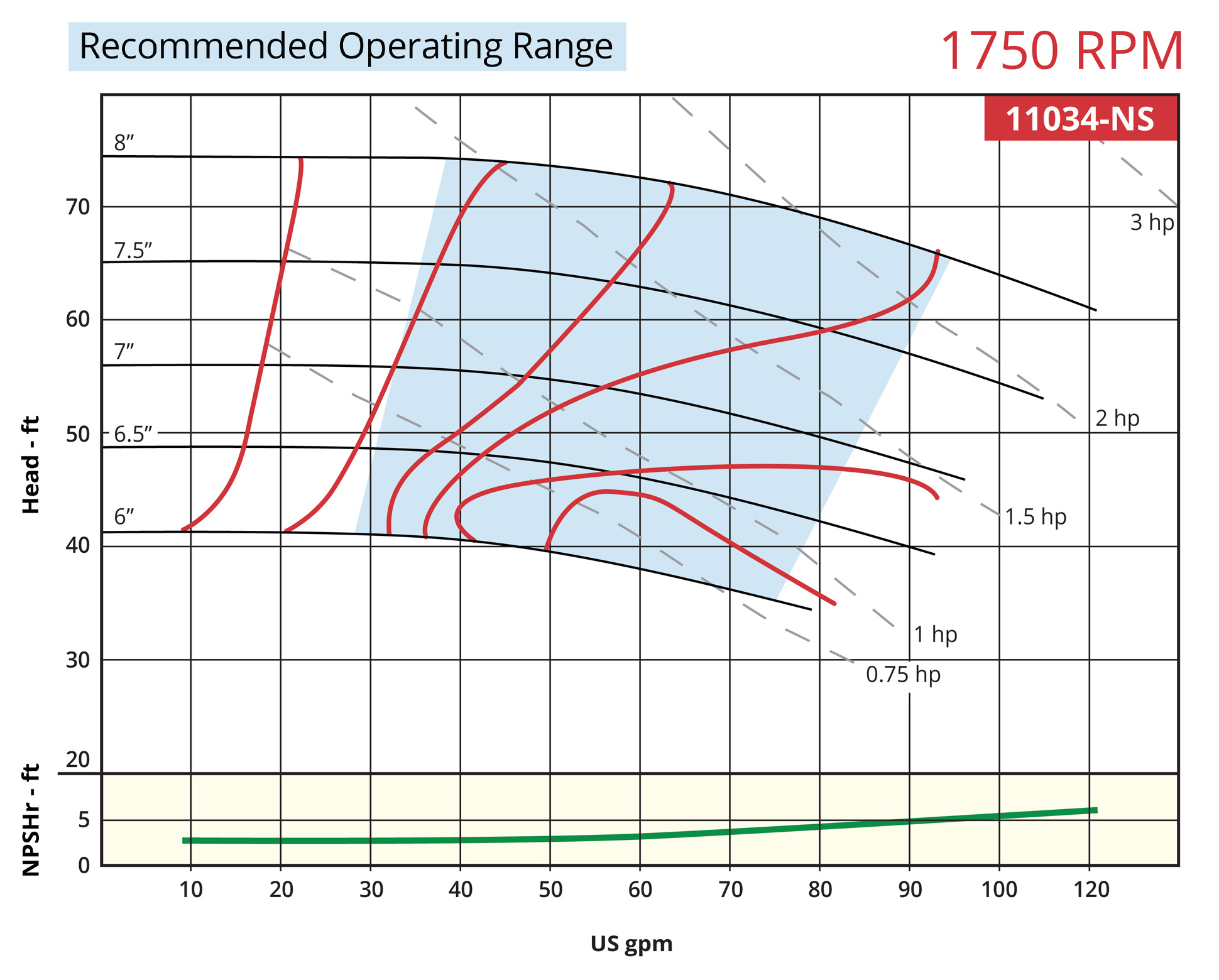

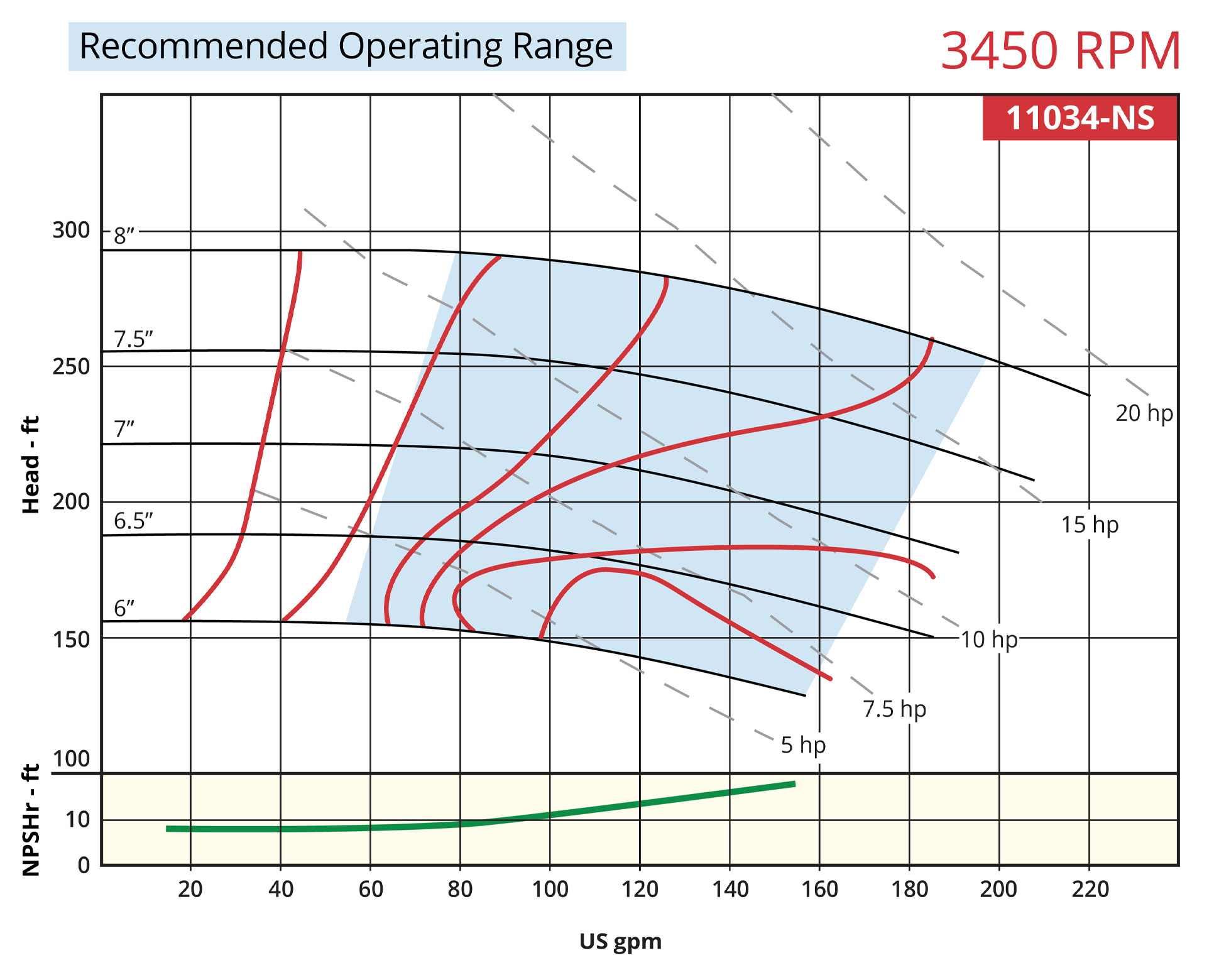

Performance Curves

Dimensions / Weights

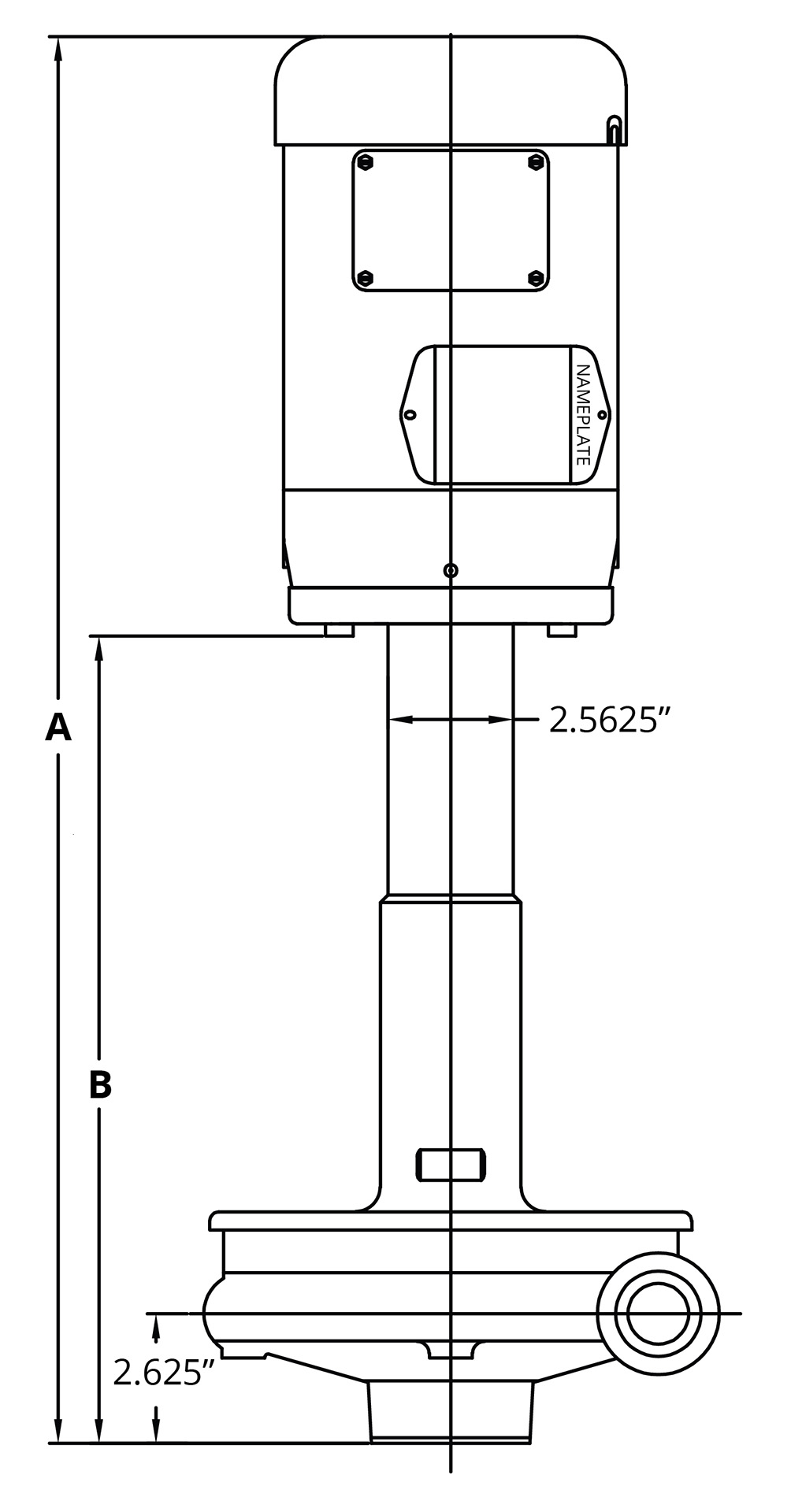

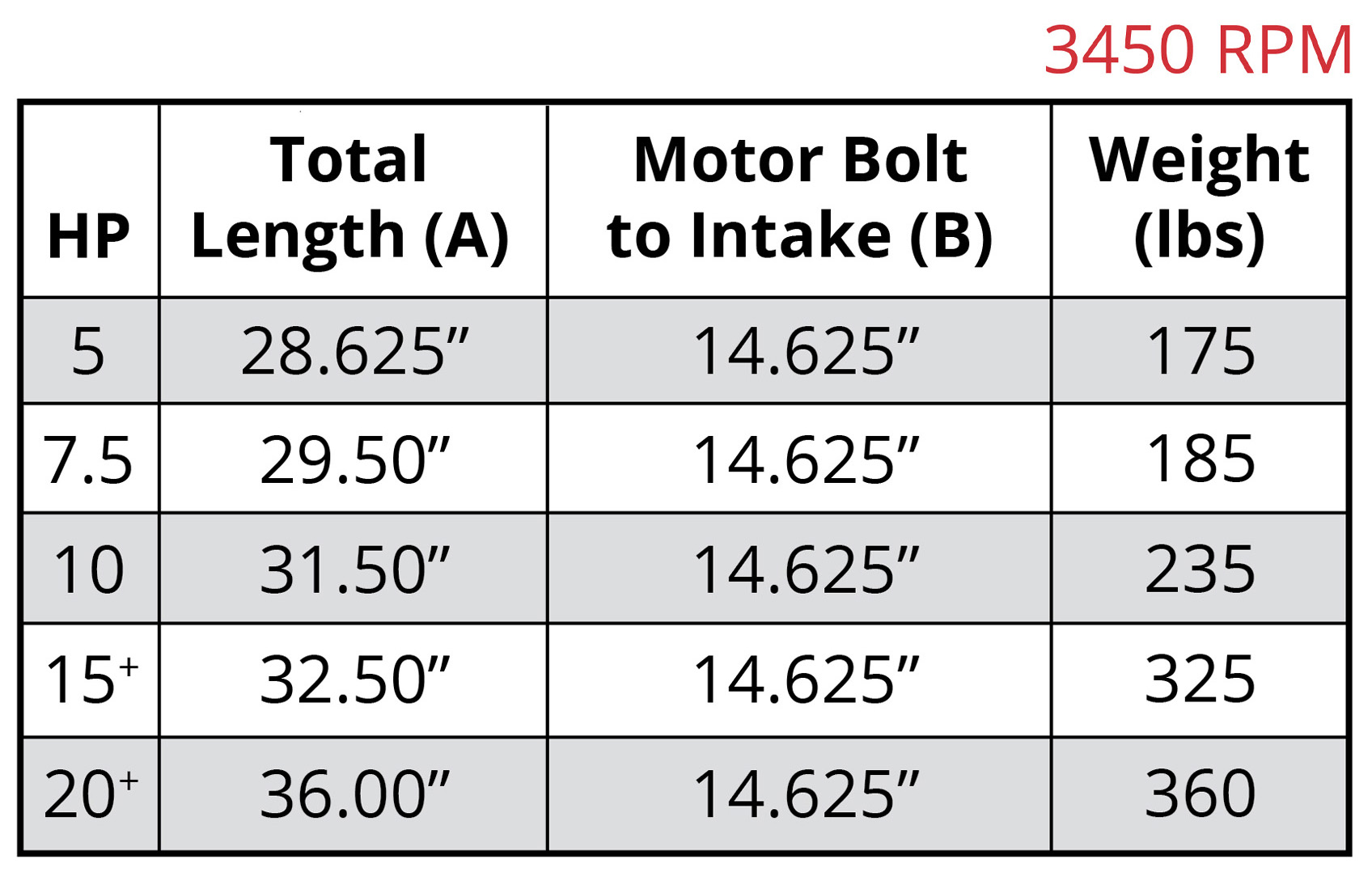

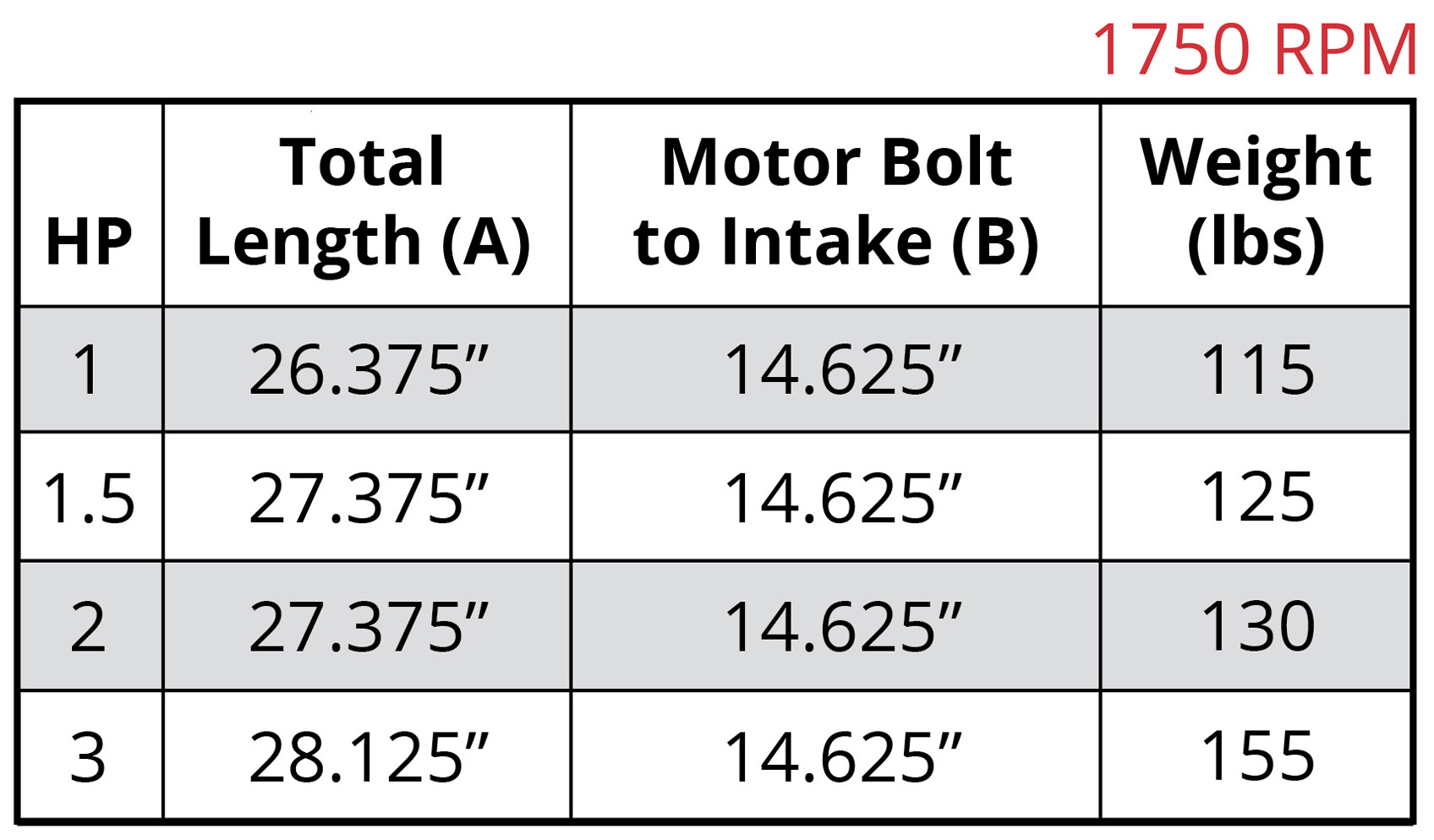

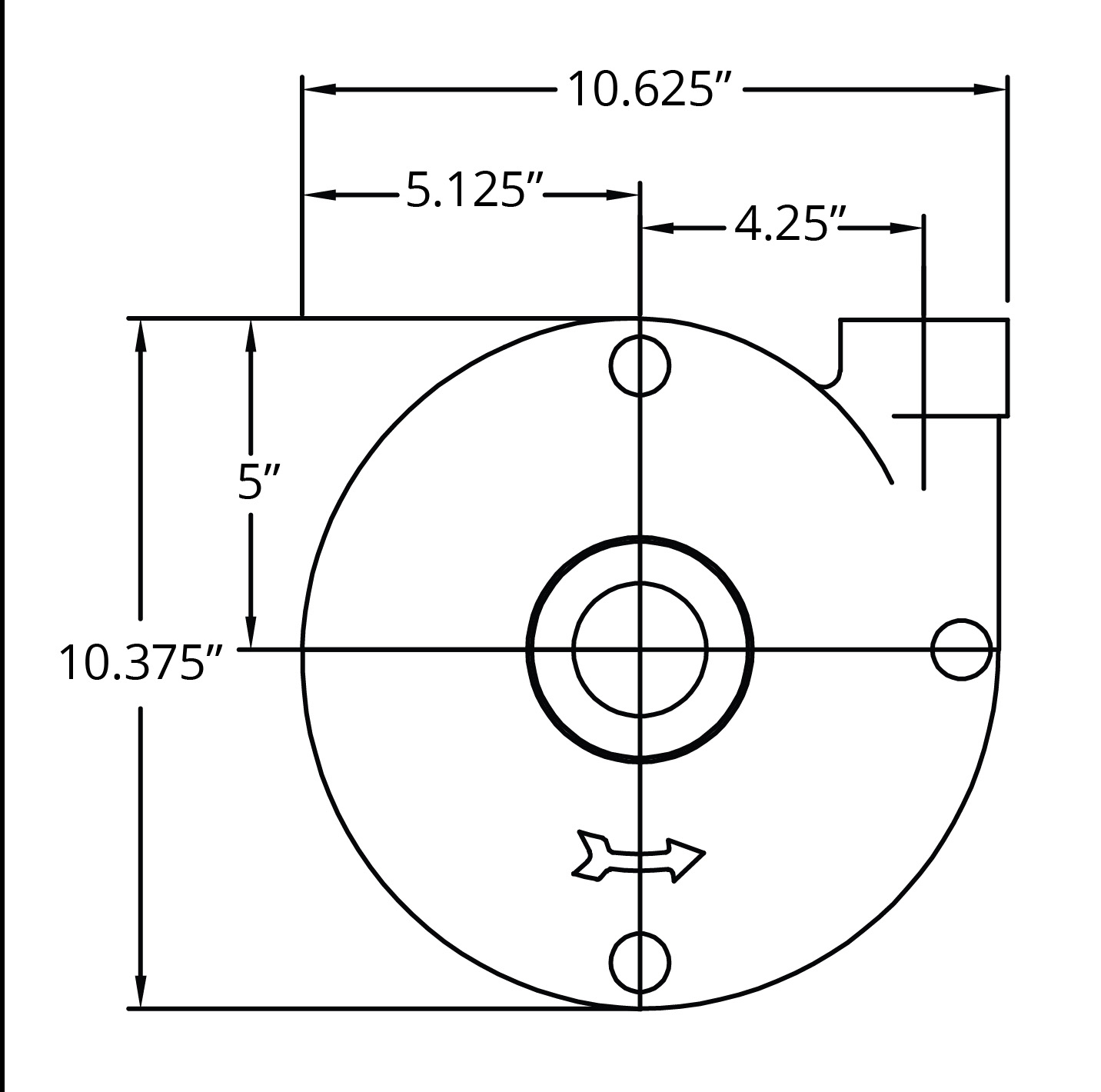

Dimensions*


*For reference only; not for construction. Contact Gusher Engineering for certified drawings.
+Available in 3 phase only
For extended lengths (6”, 12”, 18”, 24”, or custom), add extension length to Total Length
