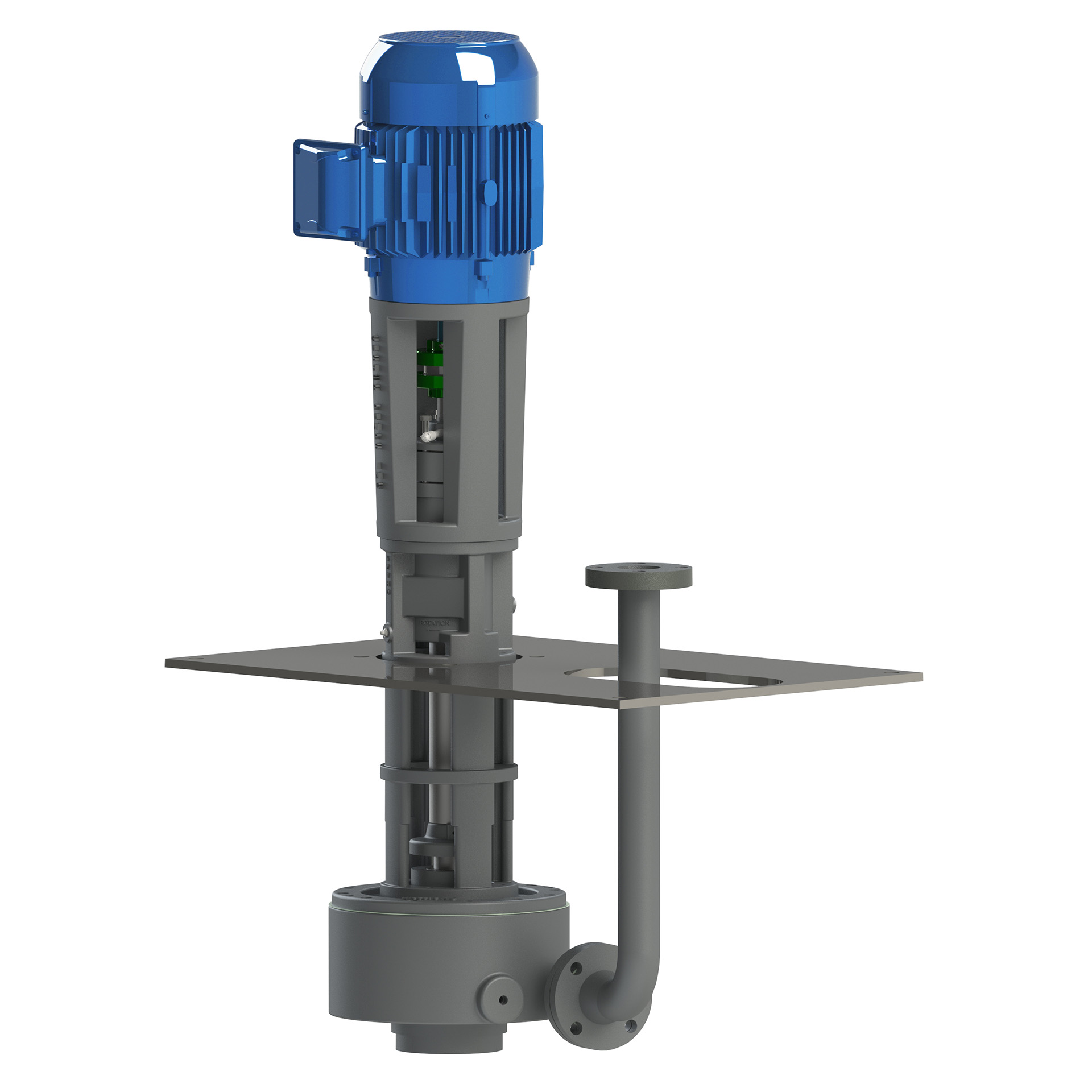

VORTEX V2x2-10SE

Key Specifications

Flow: Up to 320 gpm (1750 RPM)
Head: Up to 70’ TDH (1750 RPM)
Liquid Temp: Max 180° F
Power Options: 1.5 hp, 2 hp, 3 hp, 5 hp, 7.5 hp and 10 hp
Motor Type: TEFC, TC Frame
Max Solid Size: 2”
Intake: 2”
Discharge: 1.5”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

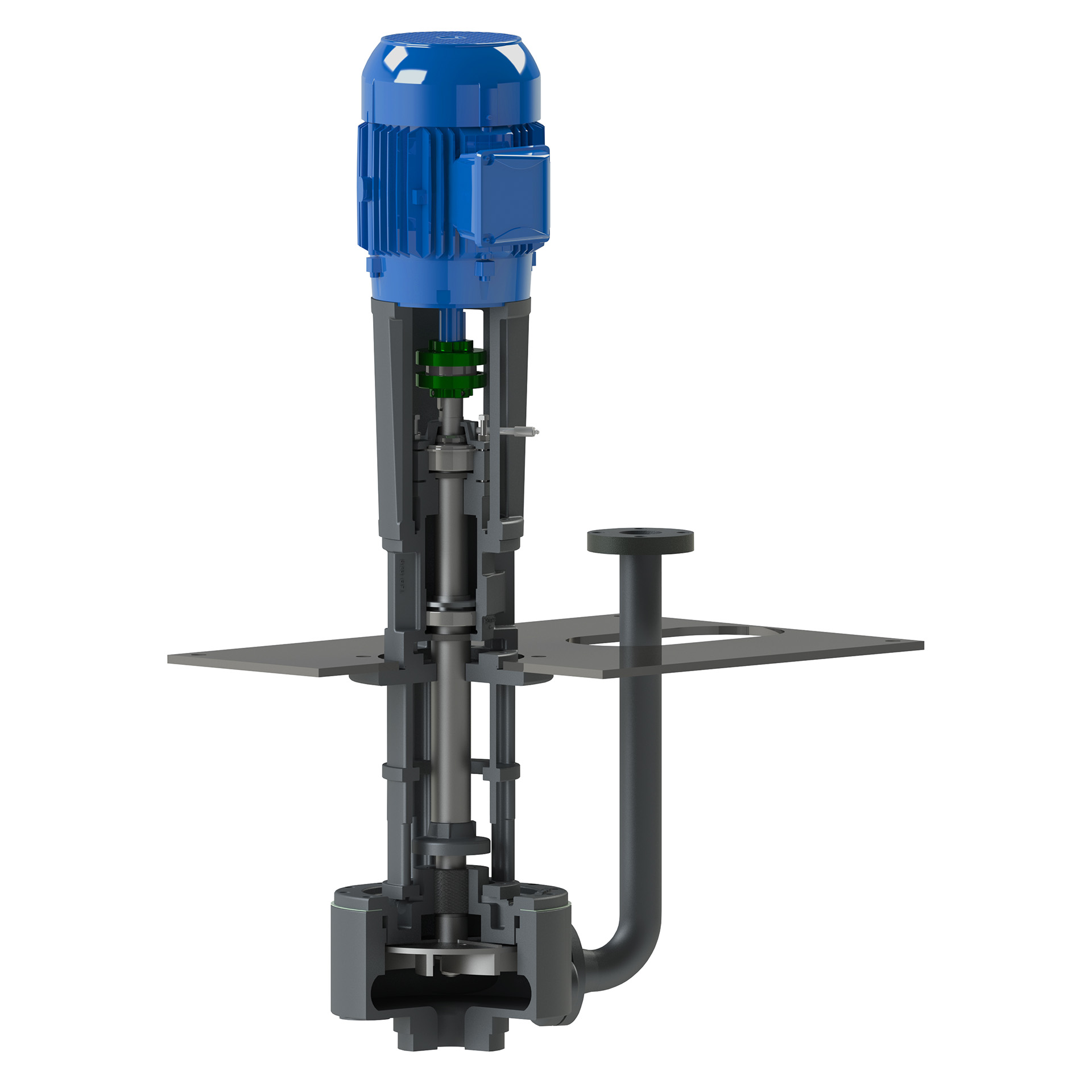

Recessed impeller handles solids and fibrous material without clogging
Durable CD4MCu impeller standard to prevent premature wear
Choice of materials for process chemical compatibility
Renewable shaft sleeves and bushings protect shaft from wear
VFD compatible motors to suit application needs
Power frame and spare wear parts interchangeable with Gusher 7550 Series pumps to streamline replacement part inventory

Options:

Cast Iron, Ductile Iron, 316 Stainless Steel, CD4MCu construction
Carbon or Tungsten Carbide bushings
Extended lengths
Flush line addition
Top pullout design–on standard, +6 & +12 lengths only; subject to Gusher Engineering approval

Applications:

Agriculture
Fibrous waste
Paper pulp
Sludge, shavings and swarf

Performance Curves

Vortex Series V2x2-10se performance curve

Dimensions / Weights

Dimensions*

Vortex Vertical V2x2-10SE dimensional drawing

*For reference only; not for construction. Contact Gusher Engineering for certified drawings.
For extended lengths (6”, 12”, 18”, 24”, or custom), add extension length to Total Length
