7071 ANSI PCL1.5x3-8SE

7071 ANSI PCL1.5×3-8SE

Key Specifications

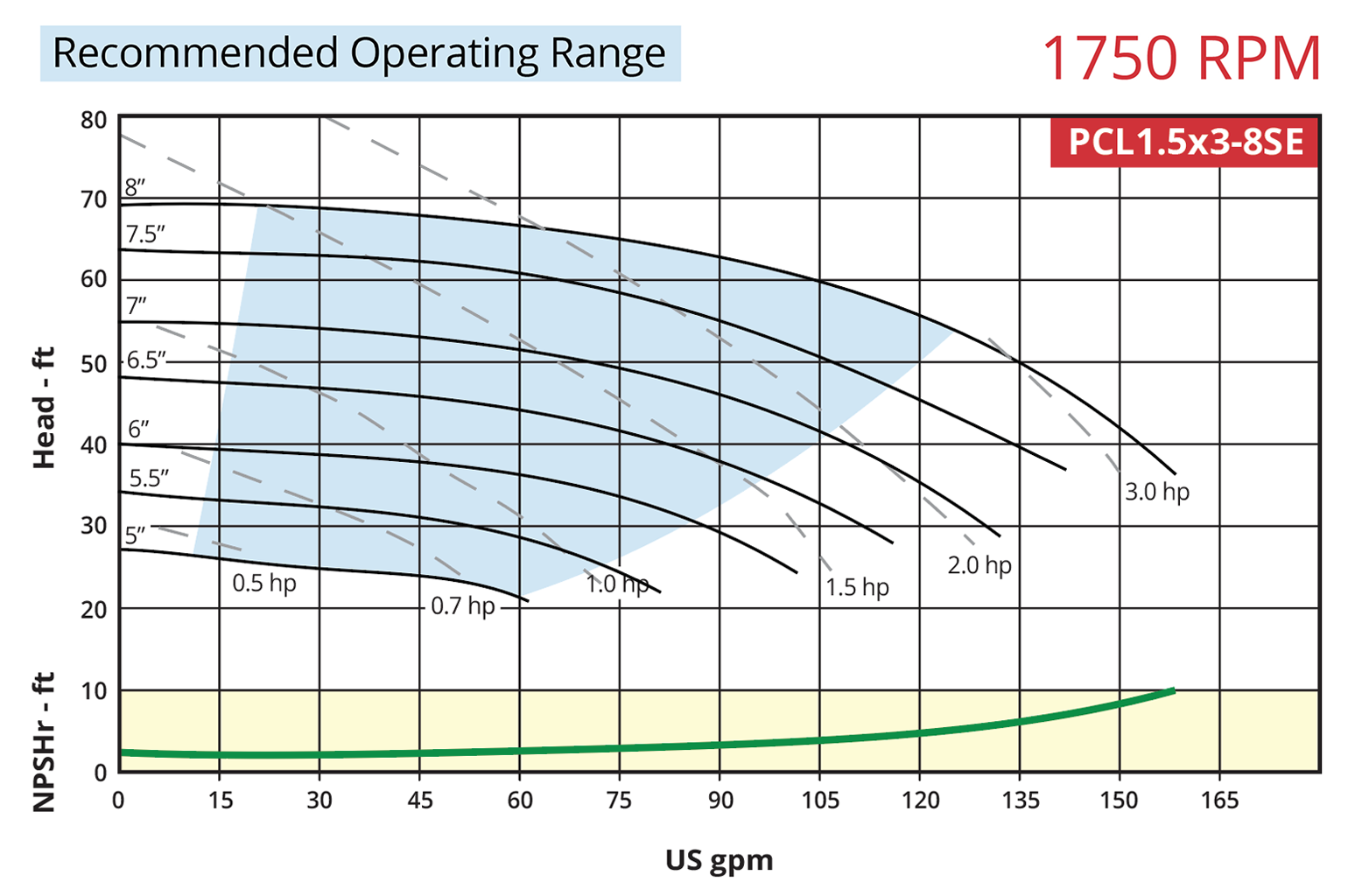

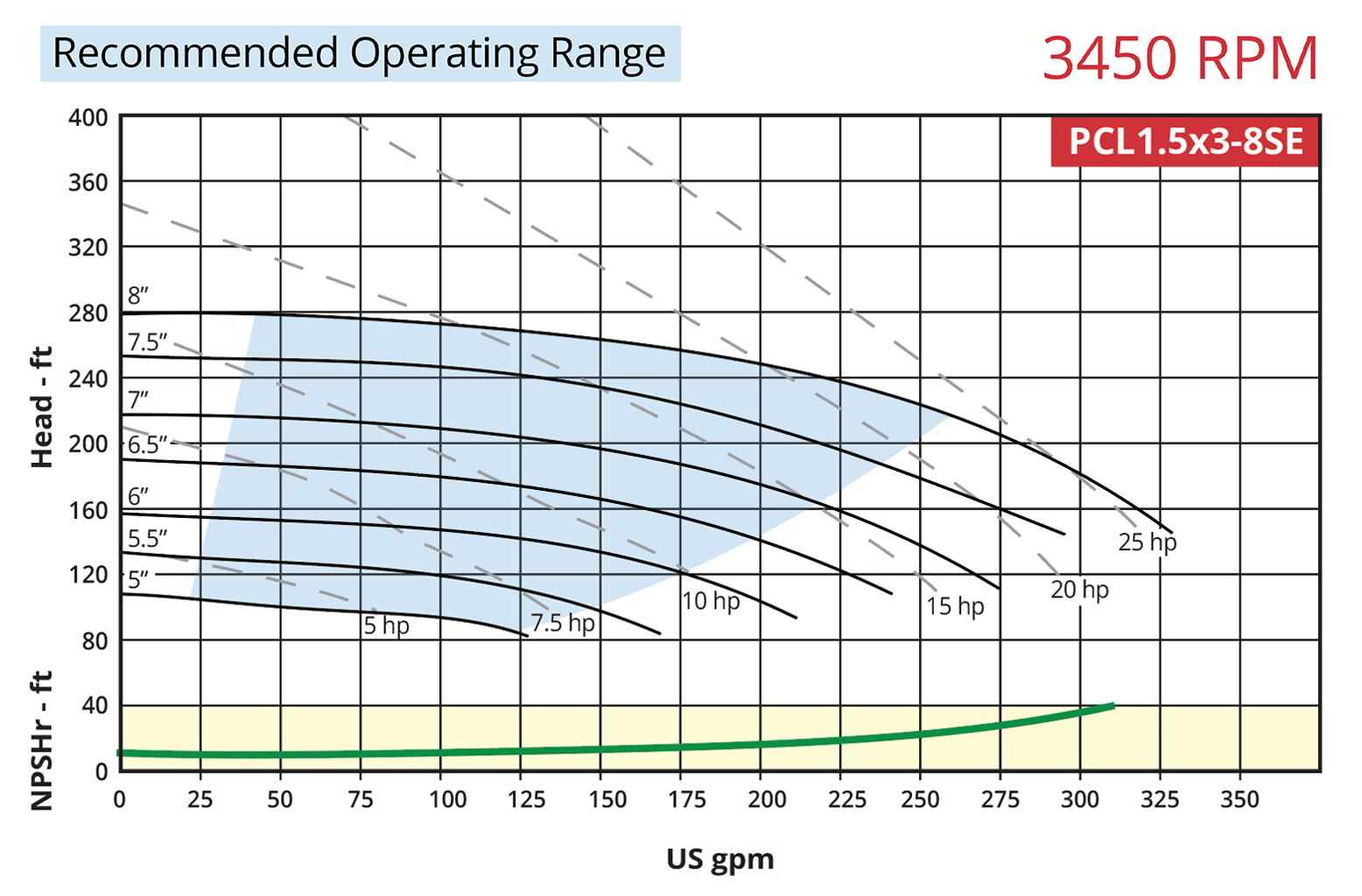

Flow: Up to 124 gpm (1750 RPM) | Up to 245 gpm (3450 RPM)
Head: Up to 69’ TDH (1750 RPM) | Up to 277’ TDH (3450 RPM)
Liquid Temp: Max 180° F
Power Frame: 7071S
Motor Type: TEFC, T Frame
Impeller Type: Semi-enclosed
ANSI Size: AB
Max Solid Size: .44”
Intake: 3”
Discharge: 1.5”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

ANSI 73.1 style foot-mounted casing with ANSI 16.5 standard flanges for simple installation
Series includes all ANSI envelope sizes, plus additional models to achieve higher flows at low pressures
Centerline intake and discharge minimizes pipe stress and vibration
Renewable shaft sleeve protects shaft from wear
Back pullout design simplifies maintenance
External impeller adjustment allows clearances to be set without downtime
Gusher Quick Ship eligible for delivery of complete standard pumps in 4 weeks; parts in 2 or less

Options:

Ductile iron, 316 stainless steel, stainless fitted construction; other alloys available
Packing or choice of multiple mechanical seal types and materials
Standard bore and tapered bore seal chambers
Cast iron base
Single or Three Phase motor
Seal flush line
