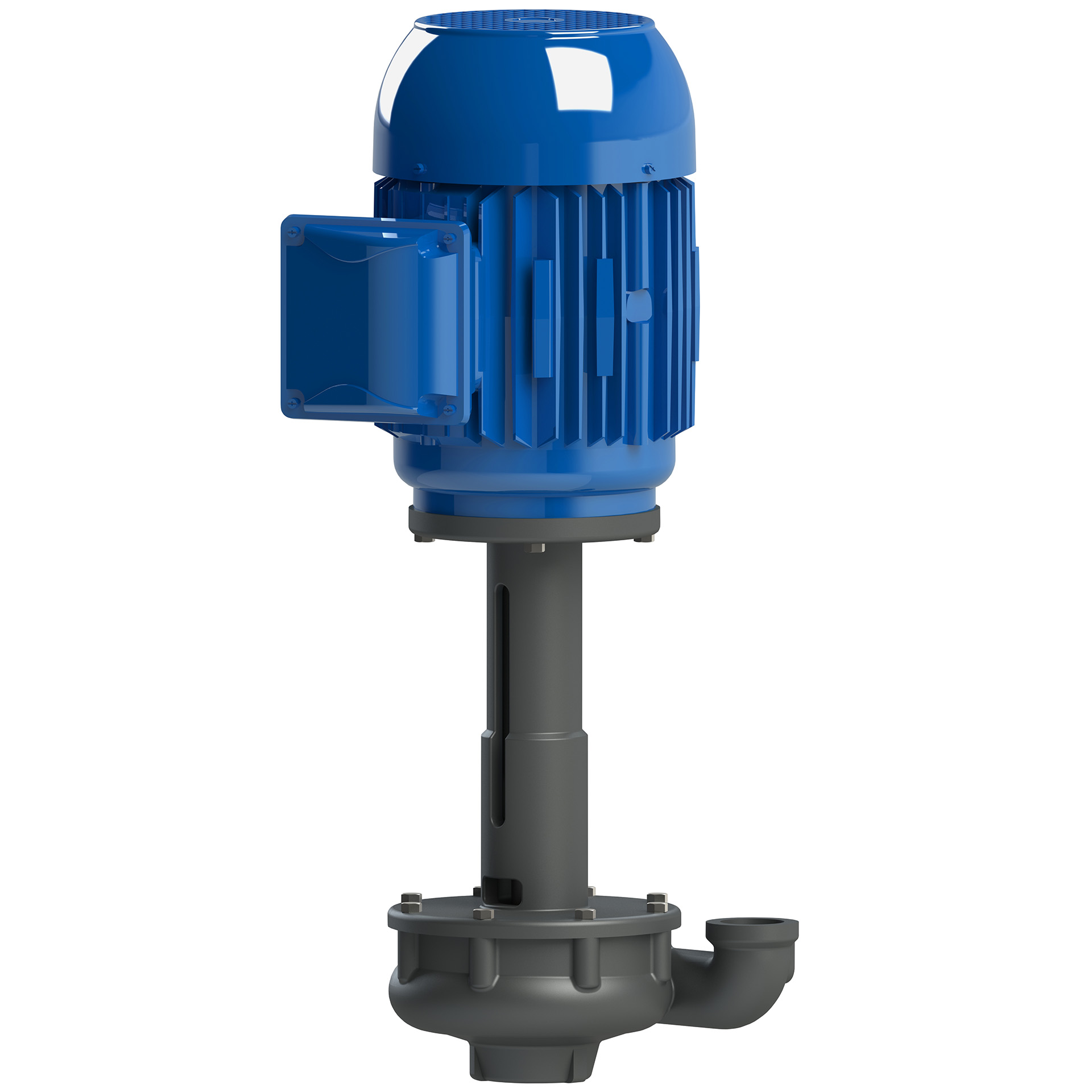

7800 Vertical 11019-AVD | 11019-AVDSE

7800 Vertical 11019-AVD | 11019-AVDSE

7800 Vertical 11019-AVD | 11019-AVDSE

Key Specifications for 1750 & 3450 RPM Models

Flow: Up to 124 gpm (1750 RPM) | Up to 182 gpm (3450 RPM)
Head: Up to 44’ TDH (1750 RPM) | Up to 170’ TDH (3450 RPM)
Liquid Temp: Max 180° F
Power Options: 1 hp, 1.5 hp, 2 hp, 3 hp, 5 hp, 7.5 hp and 10 hp
Motor Type: TCZ Frame
Max Solid Size: .375”
Intake: 2”
Discharge: 1.5”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

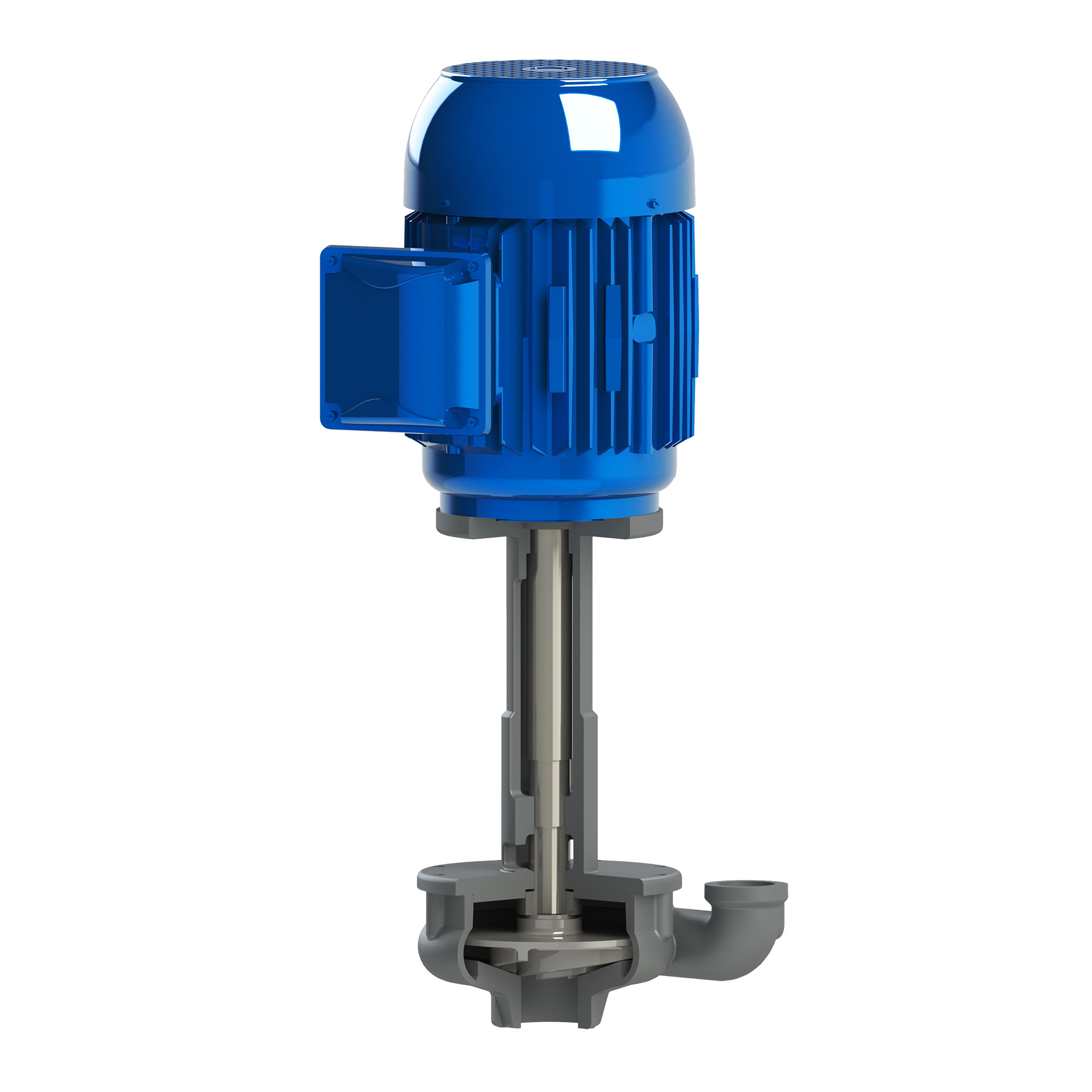

  • Enclosed impeller (11019-AVD) | Semi-enclosed impeller (11019-AVDSE)
  • Specially designed housing discharges vertically
  • More compact footprint than standard side discharge construction with added vertical pipe elbow
  • Sealless design reduces maintenance by eliminating the need for failure-prone seals
  • Renewable shaft sleeve protects shaft from wear
  • Design flexibility to suit your exact install specifications with extended lengths, multiple mounting plates and adjustable brackets

Options:

  • Enclosed column design (learn more)
  • Cast Iron or 316 Stainless Steel construction
  • Multiple bushing materials
  • Impeller variations: 316 Stainless Steel or recessed design
  • Long coupled design
  • Extended shafts (6”, 12”, 18” or 24” standard; custom available, consult engineering)
  • Adjustable mounting brackets
  • Choice of plate shape/size

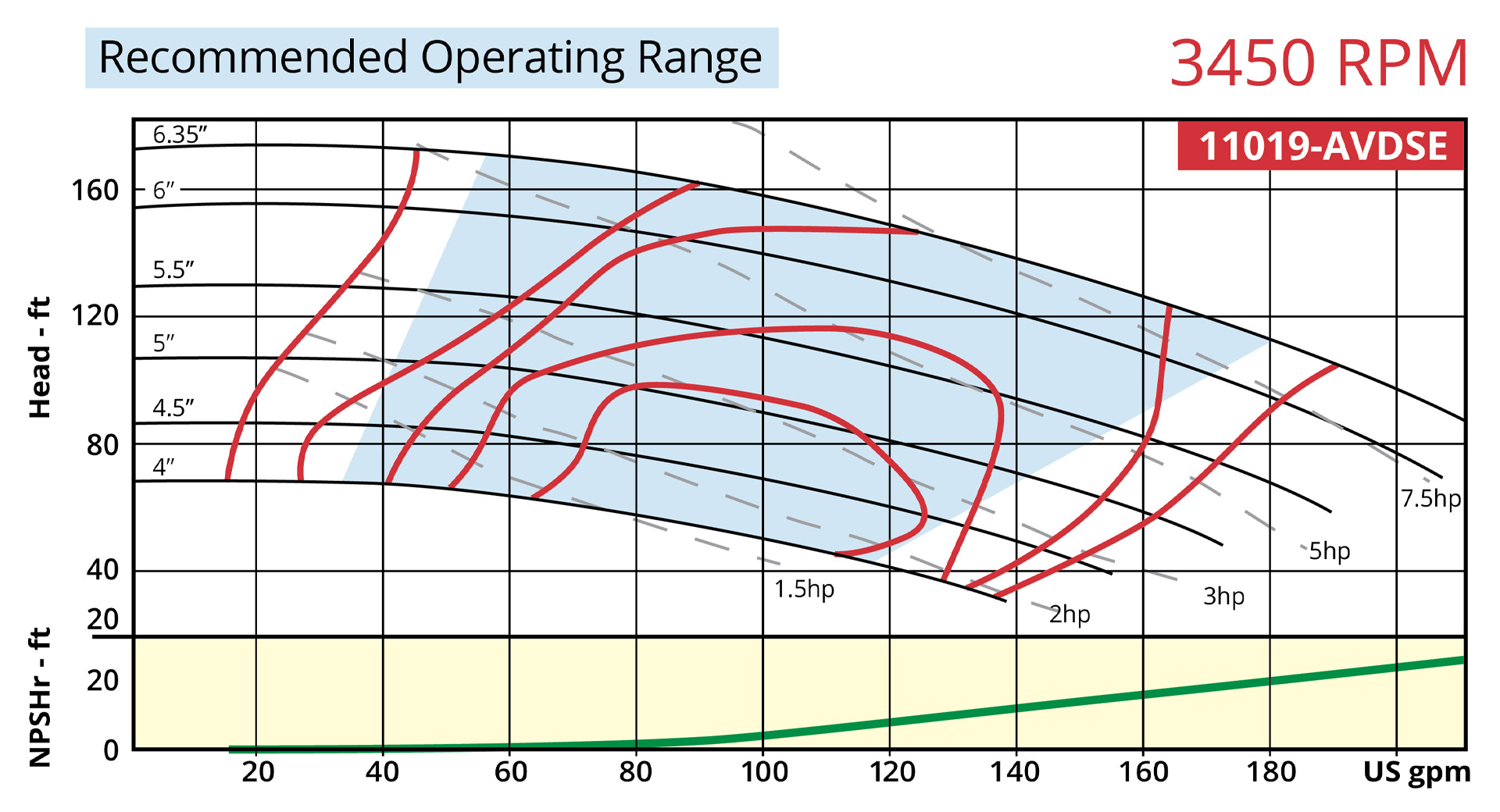

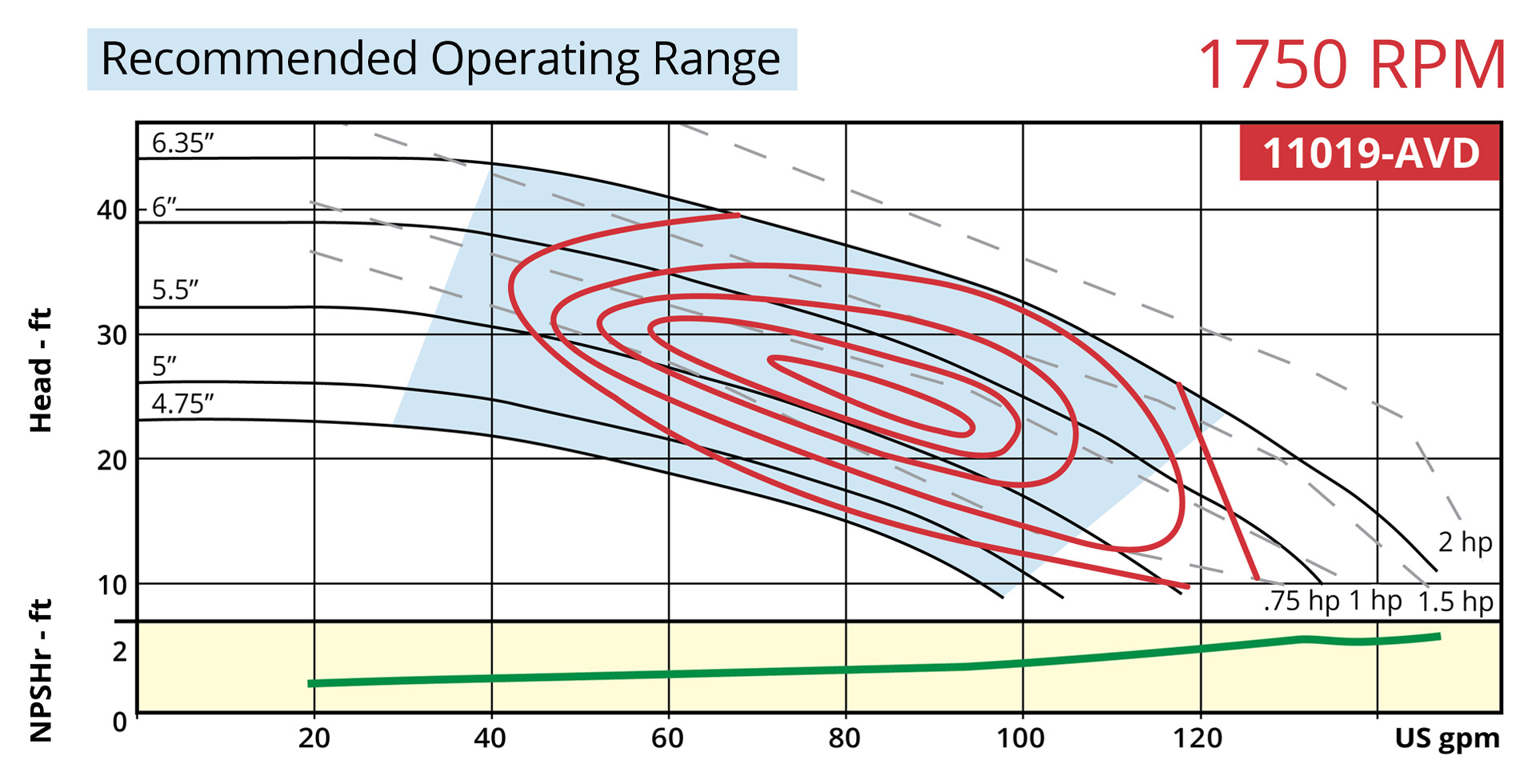

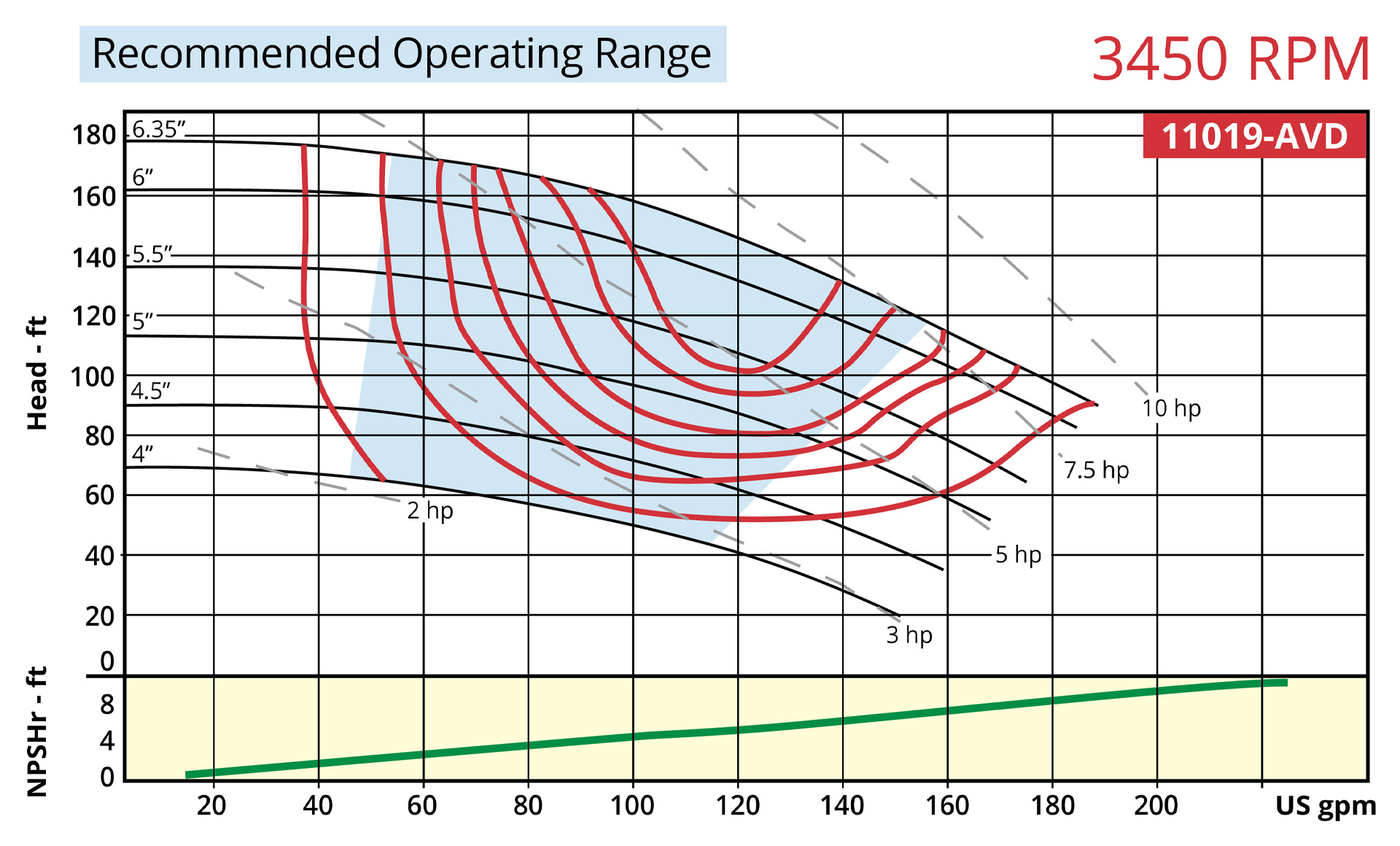

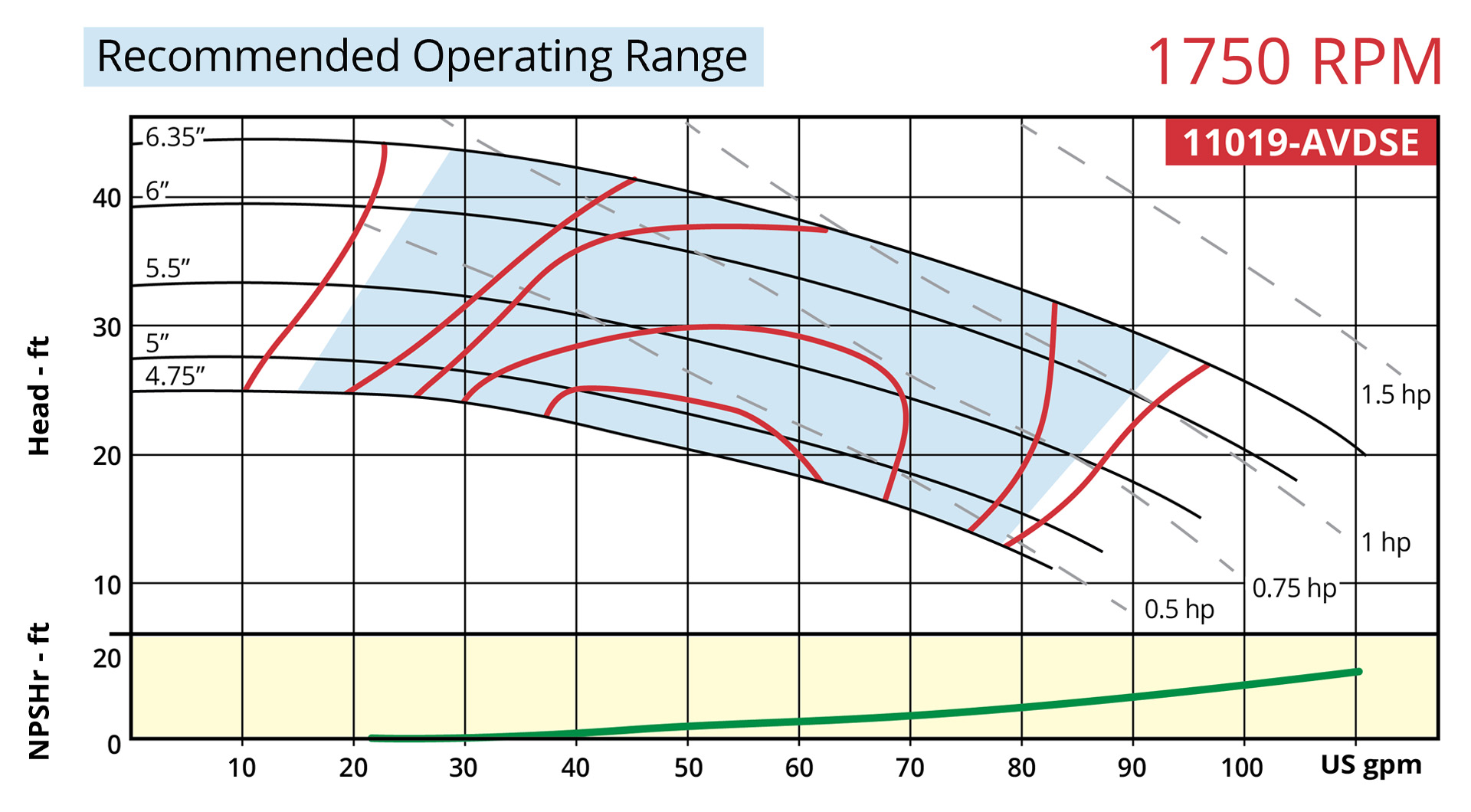

Performance Curves

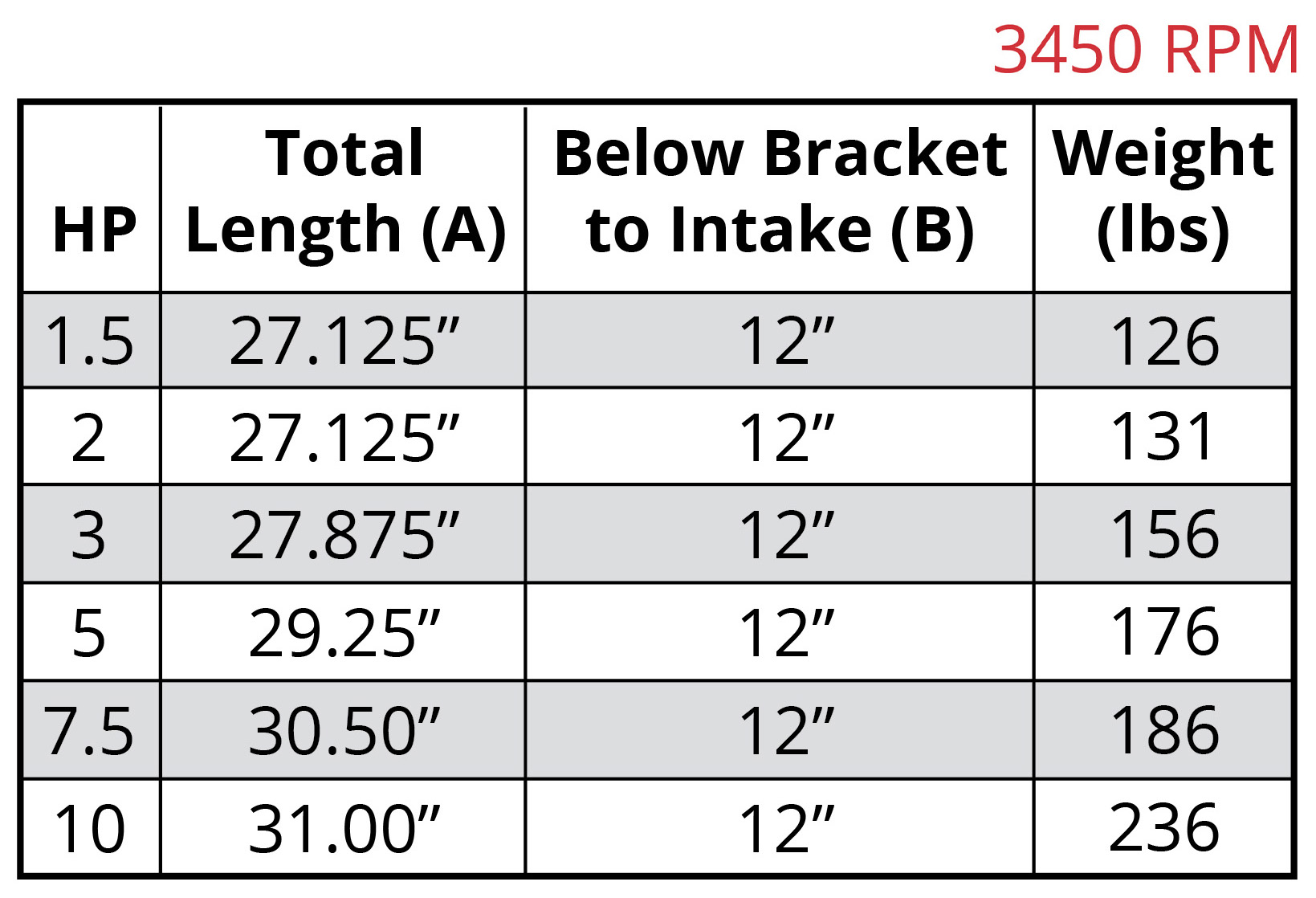

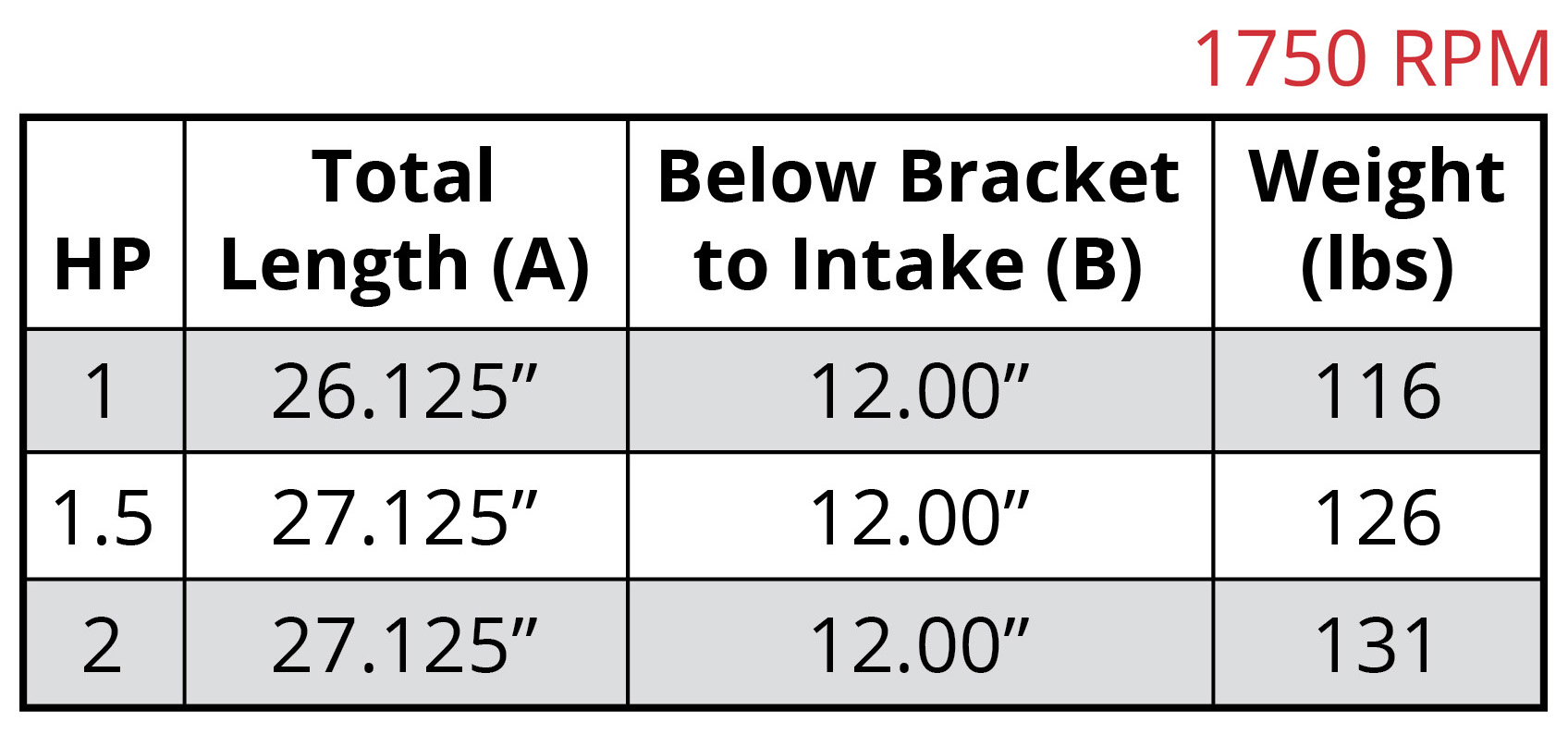

Dimensions / Weights

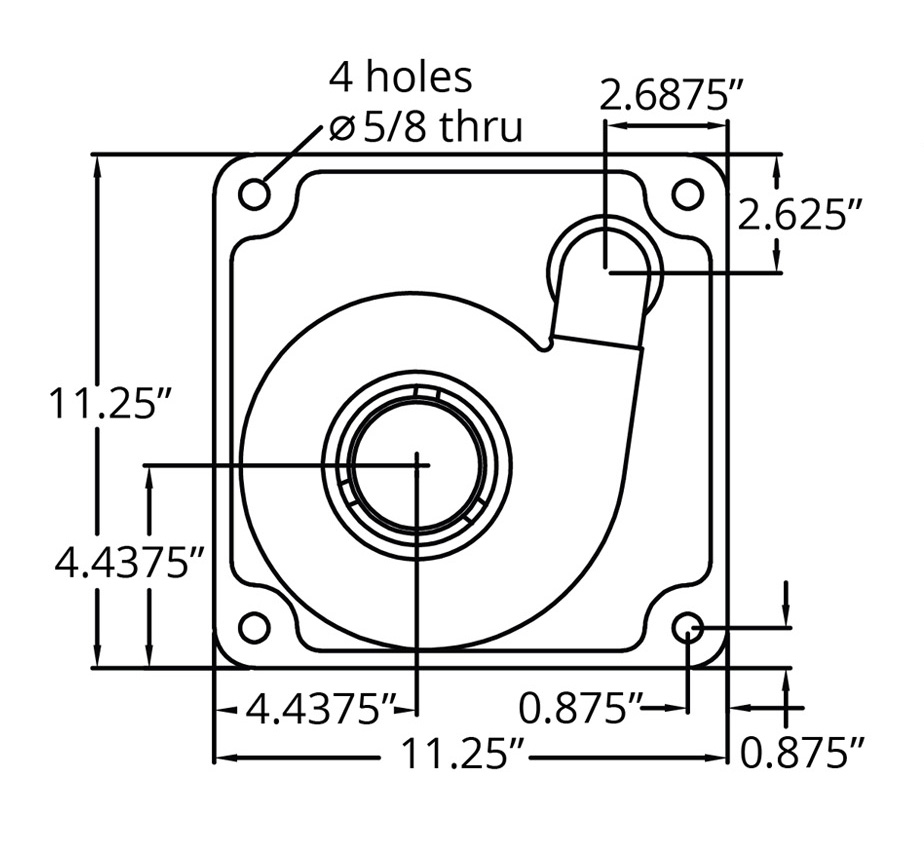

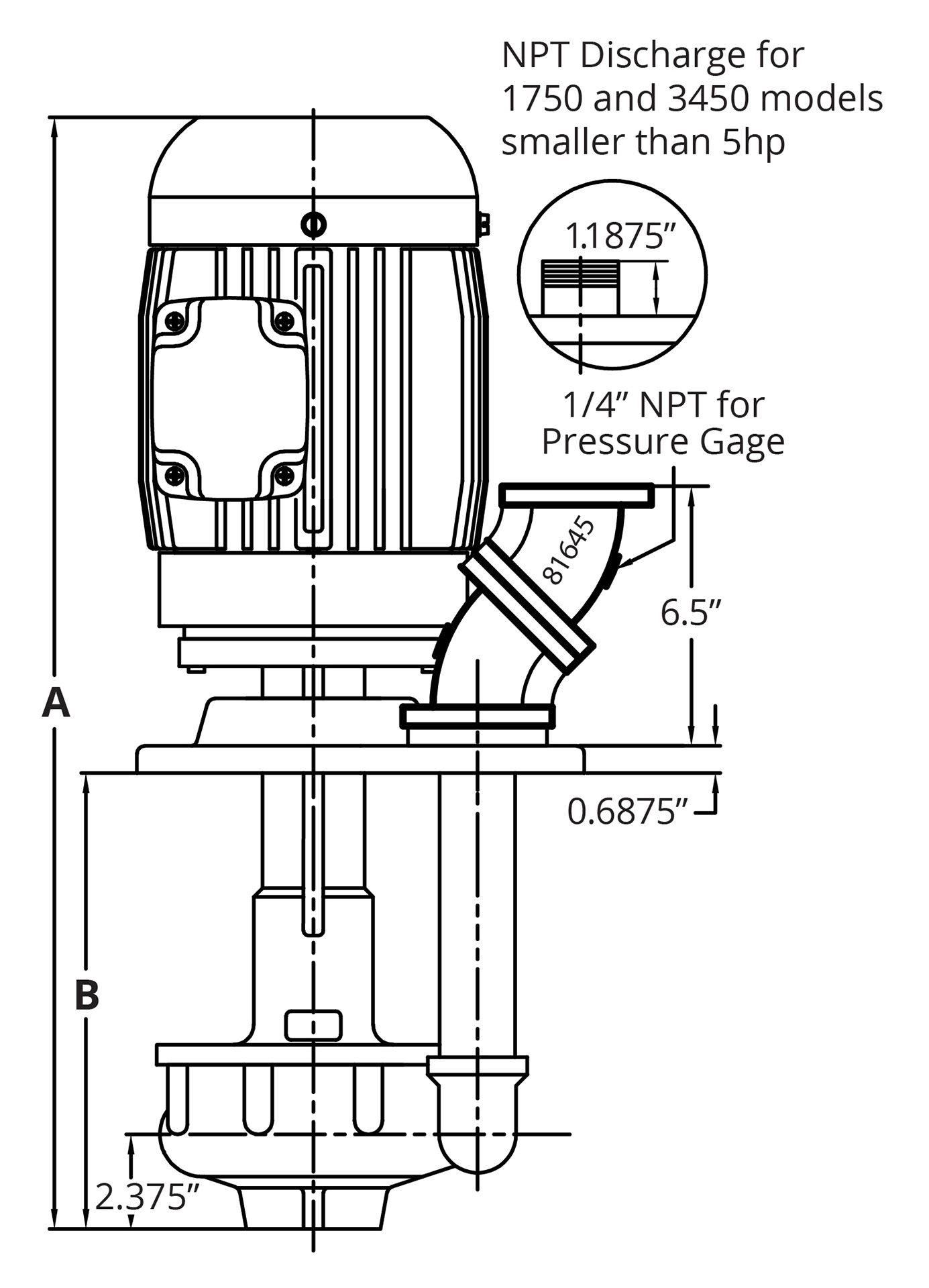

Dimensions*


*For reference only; not for construction. Contact Gusher Engineering for certified drawings.
