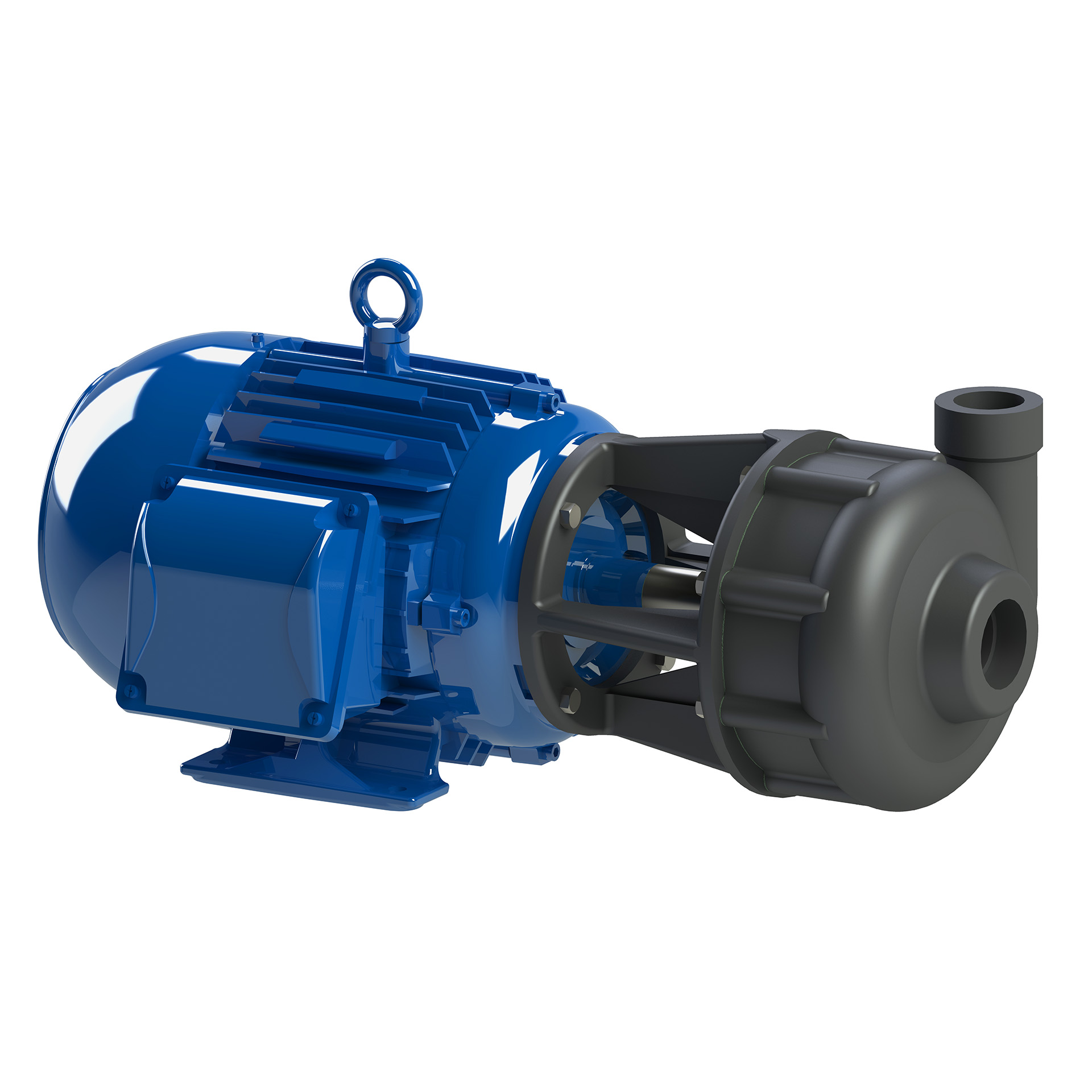

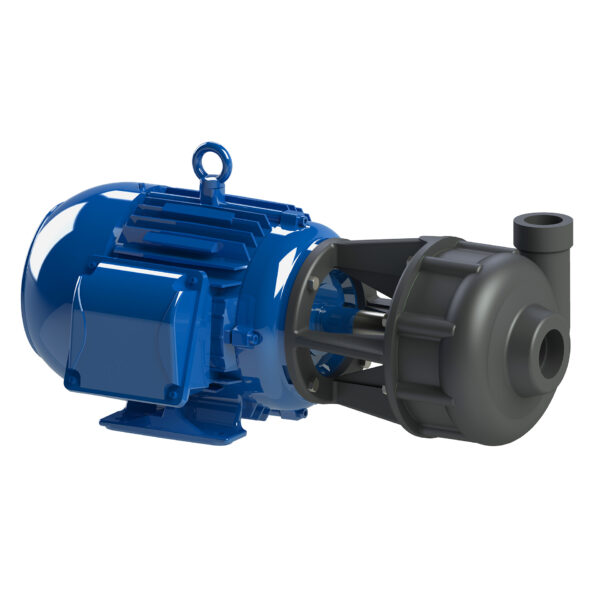

VORTEX V11019-AHSE

Key Specifications

Flow: Up to 110 gpm (1750 RPM) | Up to 210 gpm (3450 RPM)
Head: Up to 32’ TDH (1750 RPM) | Up to 124’ TDH (3450 RPM)
Liquid Temp: Max 180° F
Power Options: 1 hp, 1.5 hp, 2 hp, 3 hp, 5 hp, 7.5 hp and 10 hp
Motor Type: Standard JP Motor
Max Solid Size: .5”
Intake: 2”
Discharge: 1.5”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

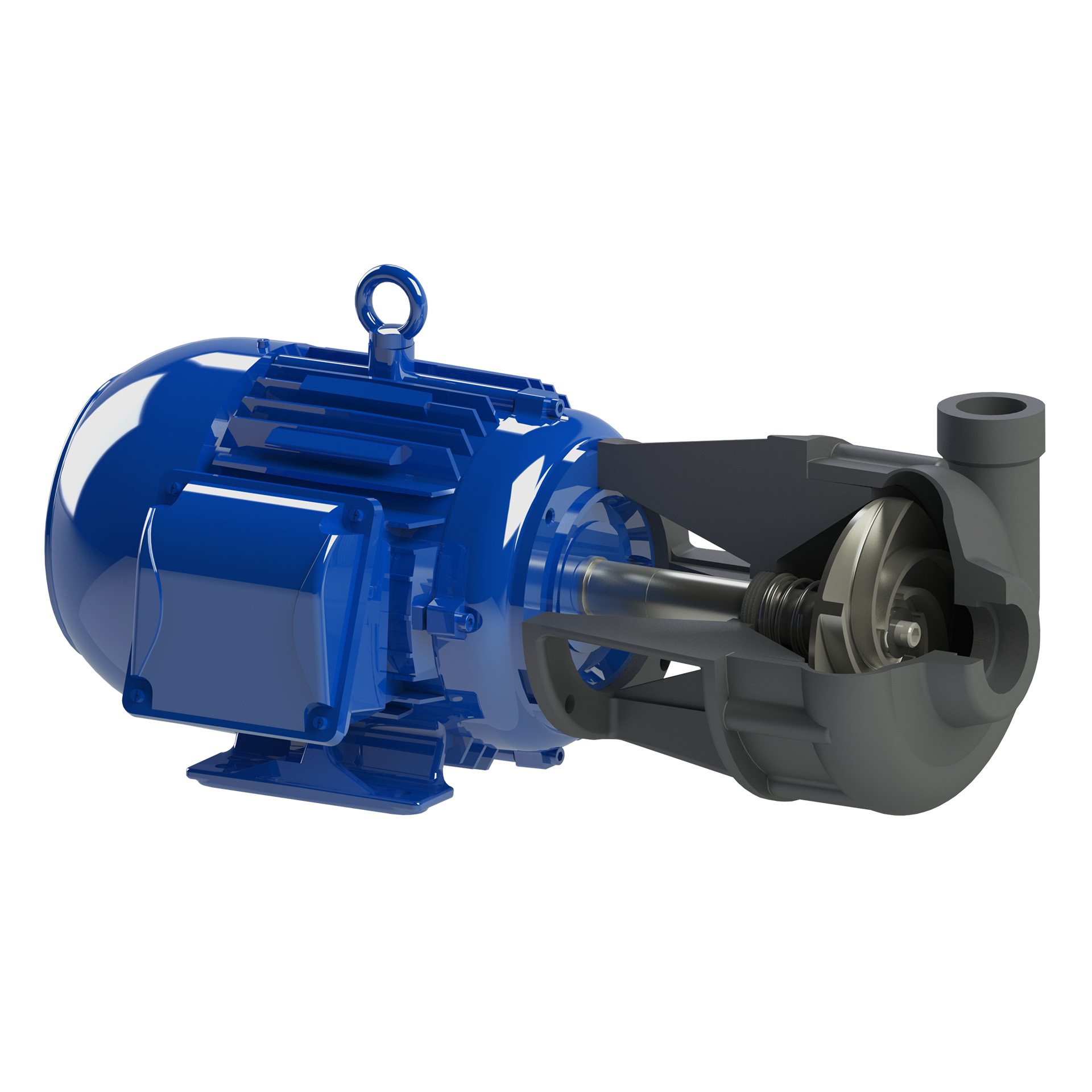

Back pullout design reduces service downtime
Durable one-piece shaft eliminates risk of coupling misalignment
Renewable shaft sleeve protects shaft from wear
Mechanical seal prevents leakage

Options:

Cast Iron, 316 Stainless Steel or 28 Chrome construction
Choice of 1 or 3 phase motor
Multiple mechanical seal materials
Impeller variations: 316 Stainless Steel
Seal flush line addition

Applications:

Agriculture
Fibrous Waste
Wastewater and water purification
Sludge, Shavings, and Swarf
Paper Pulp

Performance Curves

Dimensions / Weights

Dimensions*

Vortex Horizontal V11019-ASE Demensional Drawing

*For reference only; not for construction. Contact Gusher Engineering for certified drawings.
*Motor dimensions may vary slightly by motor manufacturer
V11019-AHSE are available in 1 hp, 1.5 hp, 2 hp and 3 hp (1750 RPM) models. Other hp shown for reference only.

Downloads

Vortex V11019-AH-SE 1750RPM
Horizontal Product Sheet

Vortex V11019-AH-SE 3450RPM
Horizontal Product Sheet

Vortex Series
Brochure

7600 Series+Vortex Series
Close-Coupled Manual (English)

7800 Series+Vortex Series
Standard Manual (English)
