VORTEX V11019-AVDSE

Key Specifications

Flow: Up to 110 gpm (1750 RPM) | 210 gpm (3450 RPM)
Head: Up to 32’ TDH (1750 RPM) | 124’ TDH (3450 RPM)
Liquid Temp: Max 180° F
Power Options: 1 hp, 1.5 hp, 2 hp, 3 hp, 5 hp, 7.5 hp, and 10 hp
Motor Type: Standard JP Motor
Max Solid Size: .5”
Intake: 2”
Discharge: 1.5”

The AVD model features a specially designed housing that discharges vertically. This results in a more compact footprint than adding a pipe elbow to a pump with side discharge construction.

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

Recessed impeller handles solids and fibrous material without clogging
Durable one-piece shaft eliminates risk of coupling misalignment
Choice of materials for process chemical compatibility
Renewable shaft sleeves and bushings protect shaft from wear
VFD compatible motors to suit application needs
Sealless design reduces maintenance by eliminating the need for failure-prone seals

Options:

Cast Iron or 316 Stainless Steel construction
Choice of 1 or 3 phase motor
Extended shafts (6”, 12”, 18”, or 24” standard; custom available, consult engineering)
Impeller variations: 316 Stainless Steel

Applications:

Agriculture
Fibrous Waste
Wastewater and water purification
Sludge, shavings, and swarf
Paper Pulp

Performance Curves

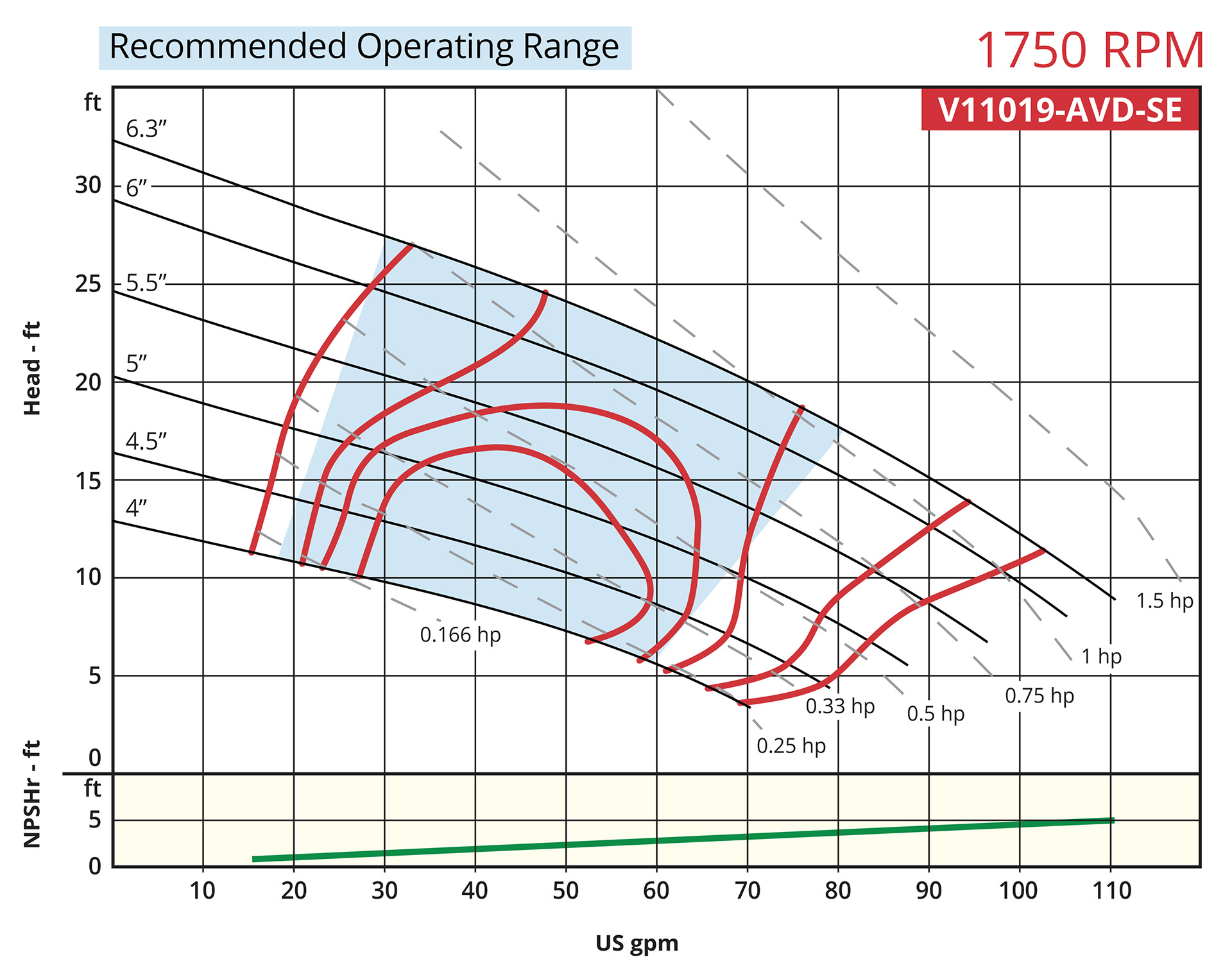

Vortex Vertical V11019-AVD-SE 1750 Performance Curve

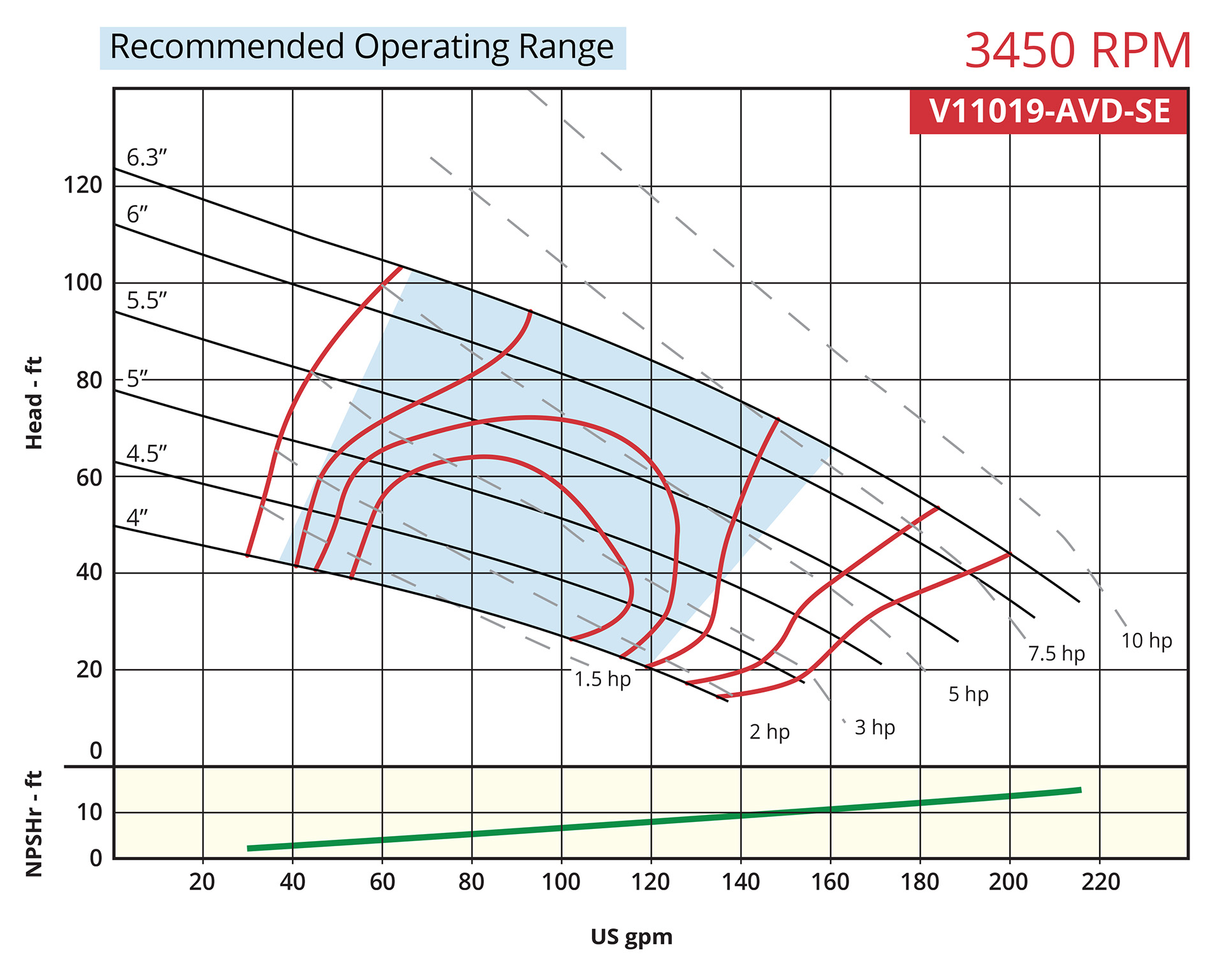

Vortex Vertical V11019-AVD-SE 3450 Performance Curve

Dimensions / Weights

Dimensions*

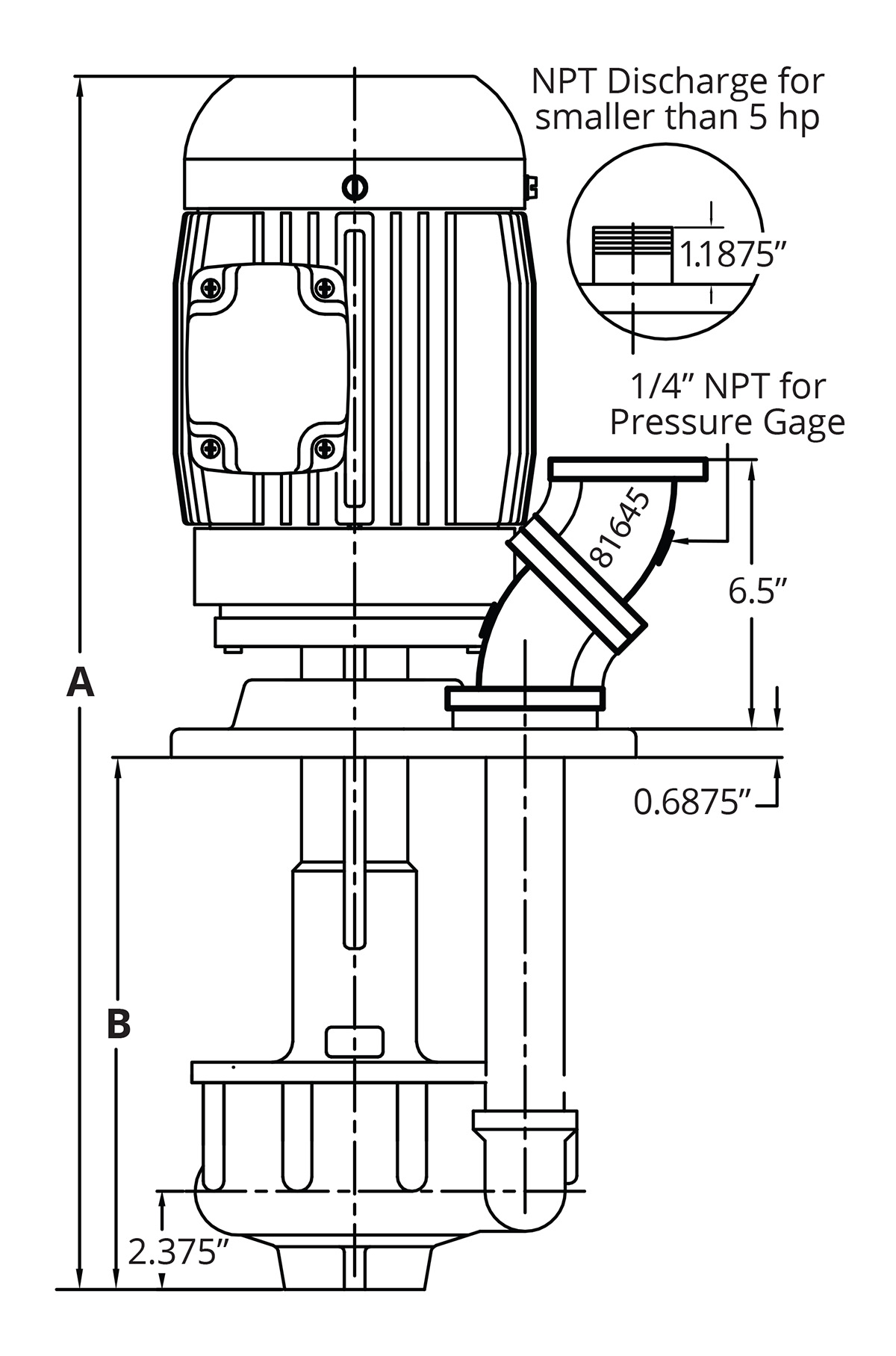

Vortex Vertical V11019-AVD-SE Demensional Drawing Full

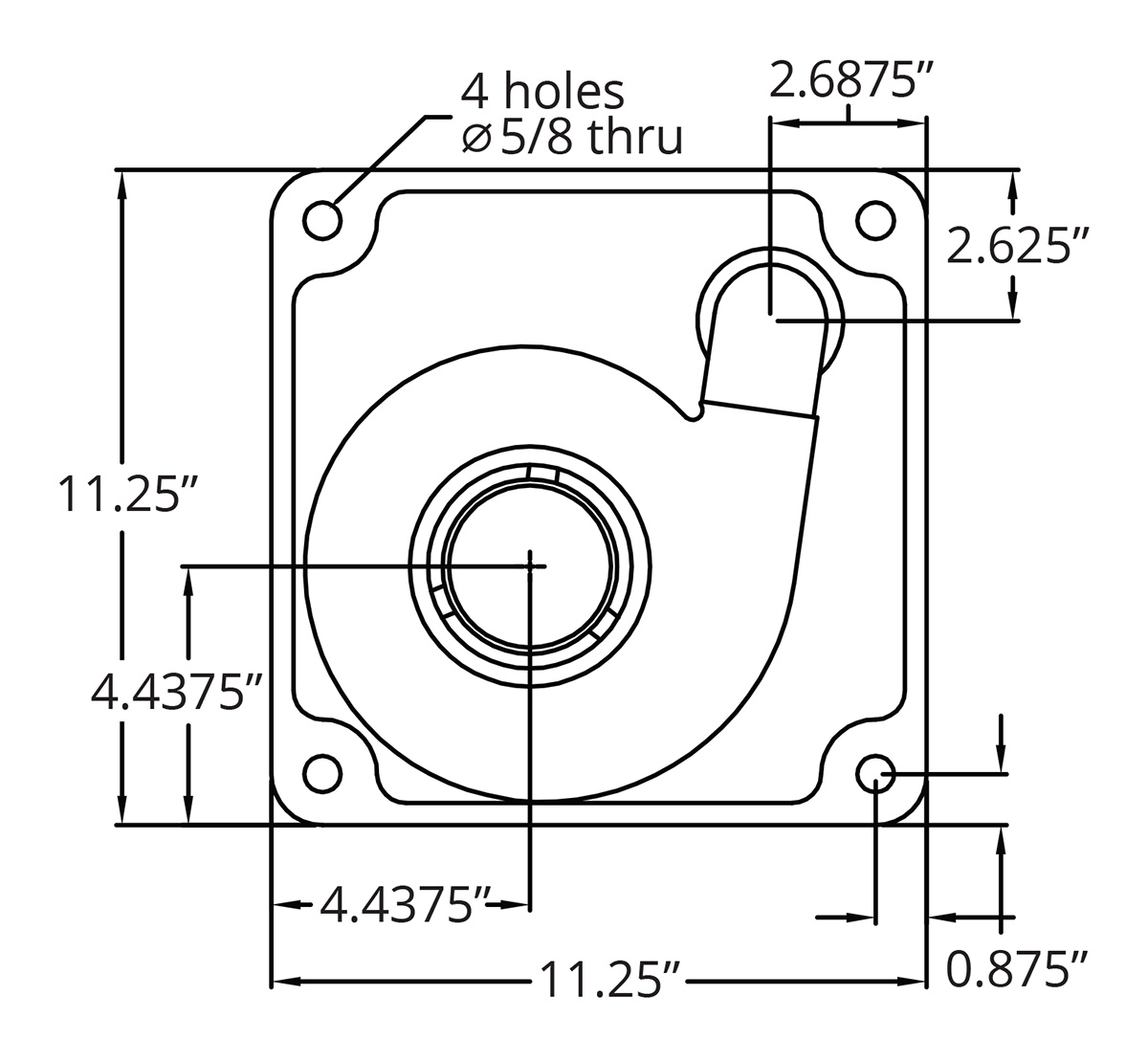

Vortex Vertical V11019-AVD-SE Demensional Drawing End

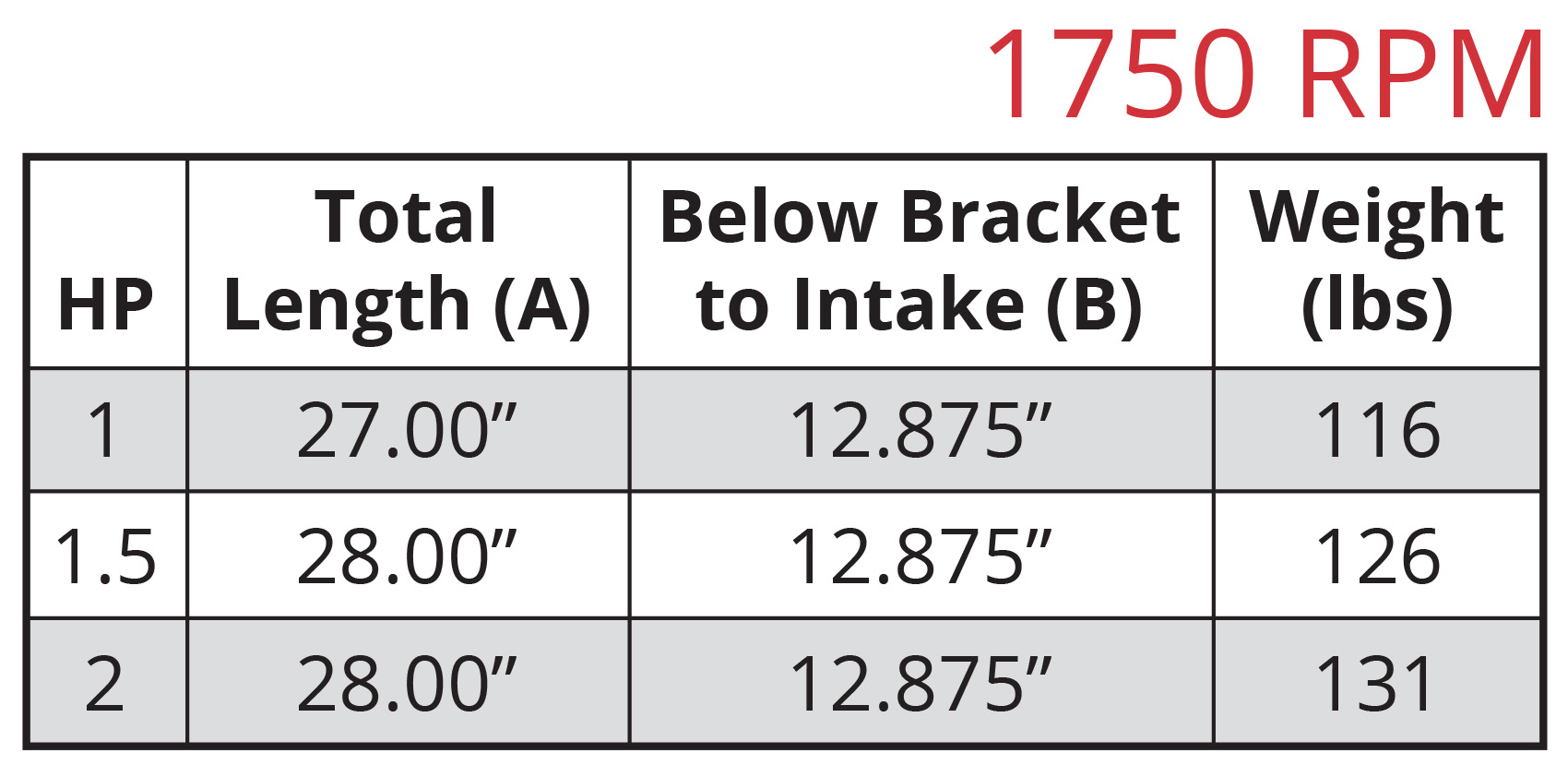

Vortex 11019-AVD 1750 RPM Dimensional Chart

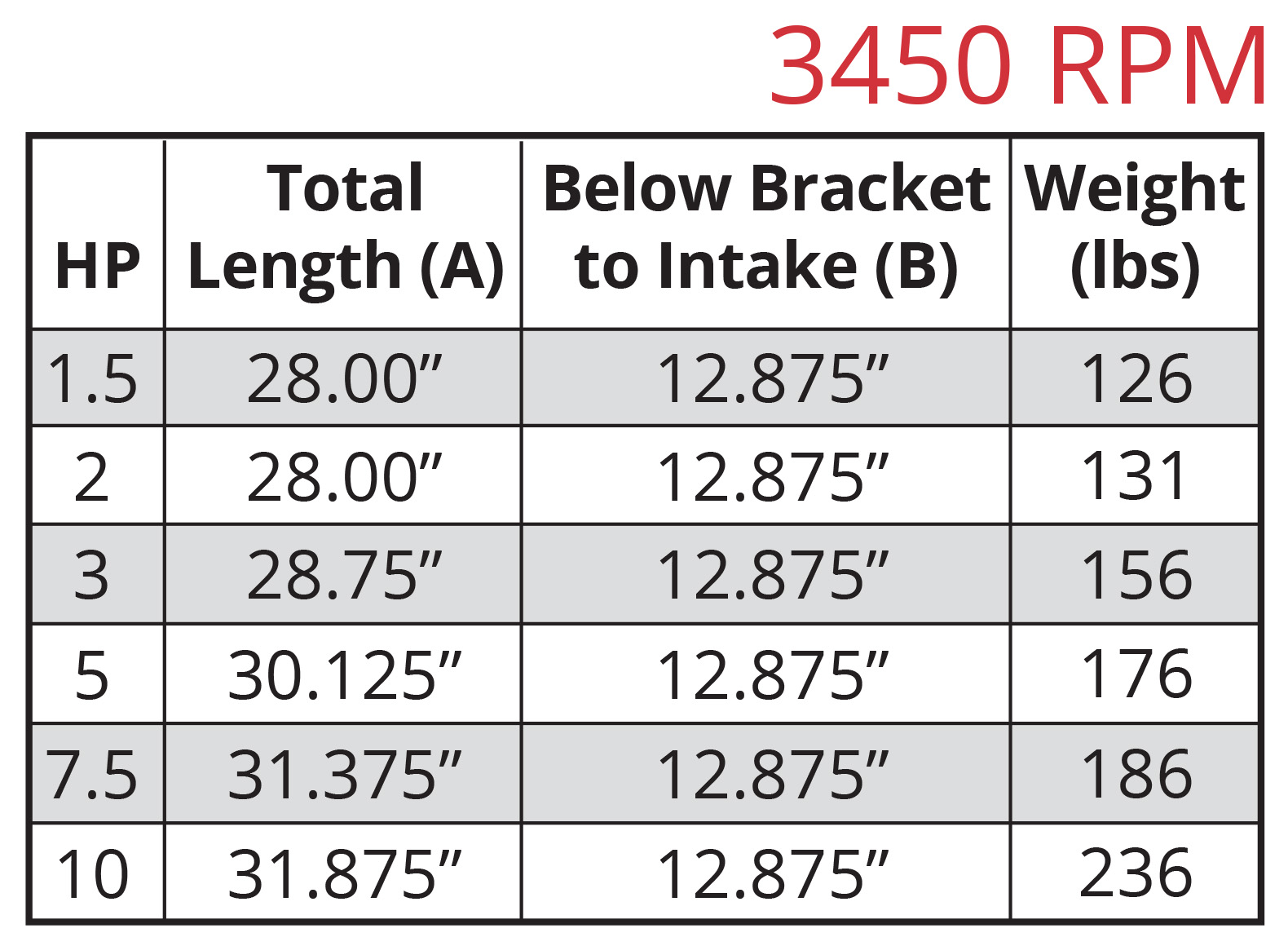

Vortex 11019-AVD 3450 RPM Dimensional Chart

*For reference only; not for construction. Contact Gusher Engineering for certified drawings.
For extended lengths (6”, 12”, 18”, 24”, or custom), add extension length to Total Length
