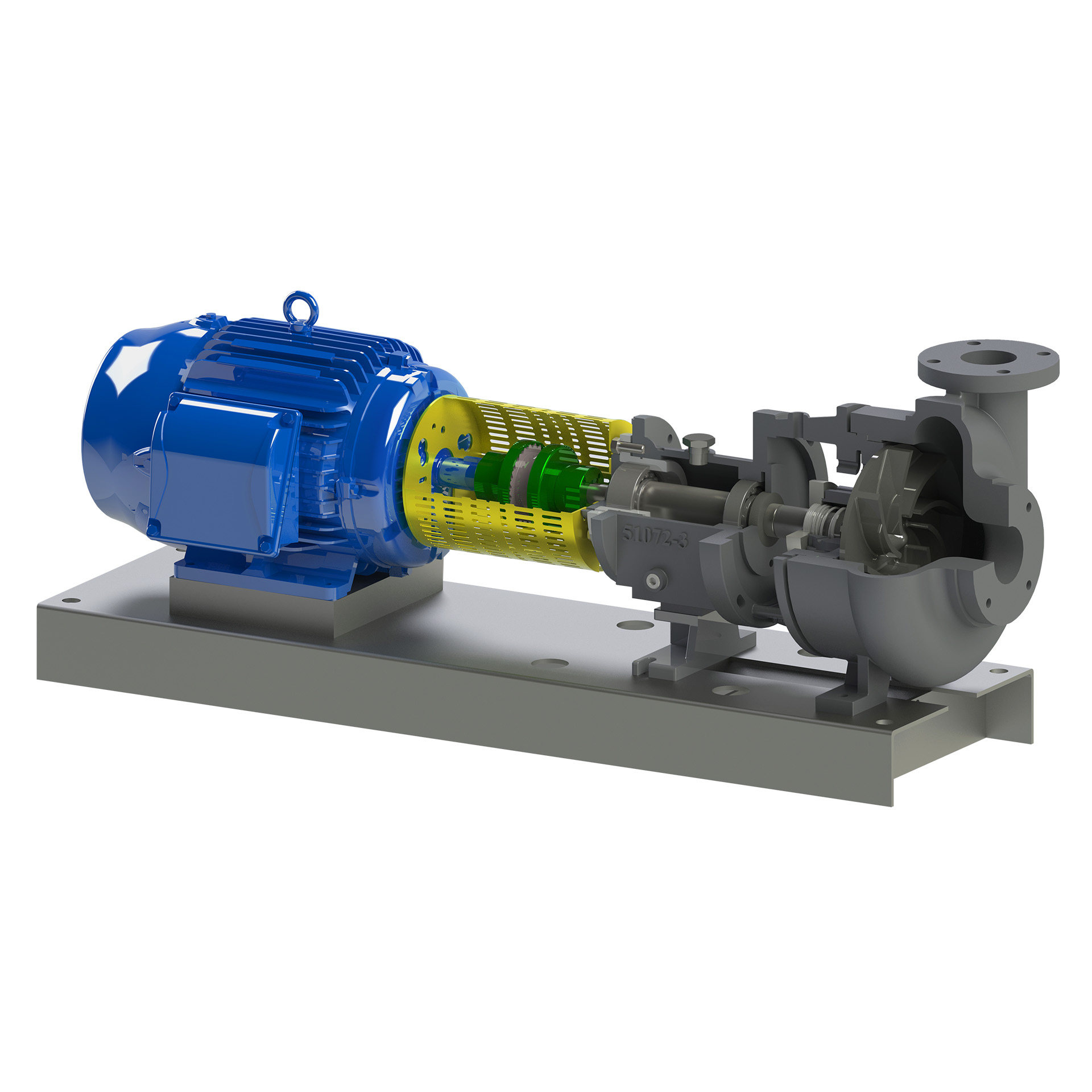

VORTEX V3x3-10SE

Key Specifications

Flow: Up to 760 gpm (1750 RPM)
Head: Up to 110’ TDH (1750 RPM)
Liquid Temp: Max 180° F
Power Options: 7.5 hp, 10 hp, 15 hp, 20 hp, 25 hp, 30 hp and 40 hp
Motor Type: TEFC, T Frame
Max Solid Size: 3”
Intake: 3”
Discharge: 3”

SELECT A DIFFERENT MODEL

Not sure what model you need? Visit PumpIQ.

Features & Options

Features:

Recessed impeller handles solids and fibrous material without clogging
Durable CD4MCu impeller standard to prevent premature wear
Choice of materials for process chemical compatibility
Renewable shaft sleeves and bushings protect shaft from wear
Mechanical seal prevents leakage
Back pullout design simplifies maintenance
VFD compatible motors to suit application needs
Power frame and spare wear parts interchangeable with Gusher 7071 Series pumps to streamline replacement part inventory
